Windlasses
What size boat do you need Windlasses for?
Windlasses for Boats from 55 - 90 feet
We are glad to present our yacht models to fullfill the complete range of windlasses. The Yacht Series are represented in classic vertical models and will fit boats 55 - 90 ft (16 - 28 m).

Aquarius logo
Multiple Mounting
Options
  Highspeed Windlass logo
Estremely powerful 2500 watt motors, and deck unit in Stainless Steel 316L. Both models offer different mounting options; the chain pipe can be mounted left or right of the chain stripper, or further in front of the windlass. With capstan for optional warping operation. Vertical shaft in stainless steel. Highspeed drop of up to 35 m/105 ft per minute. Manual free fall with adjustable clutch. Long term trouble-free operation. The motor/gear under install under the boat's deck for smooth and silent operation. Works with chain only (no rope or chain/rope combinations).
Mako 1500 windlass

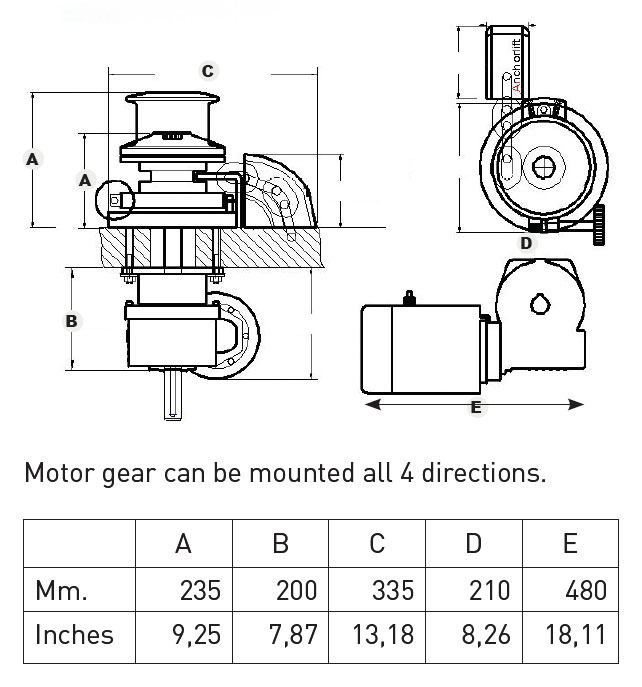

diagram icon

diagram icon

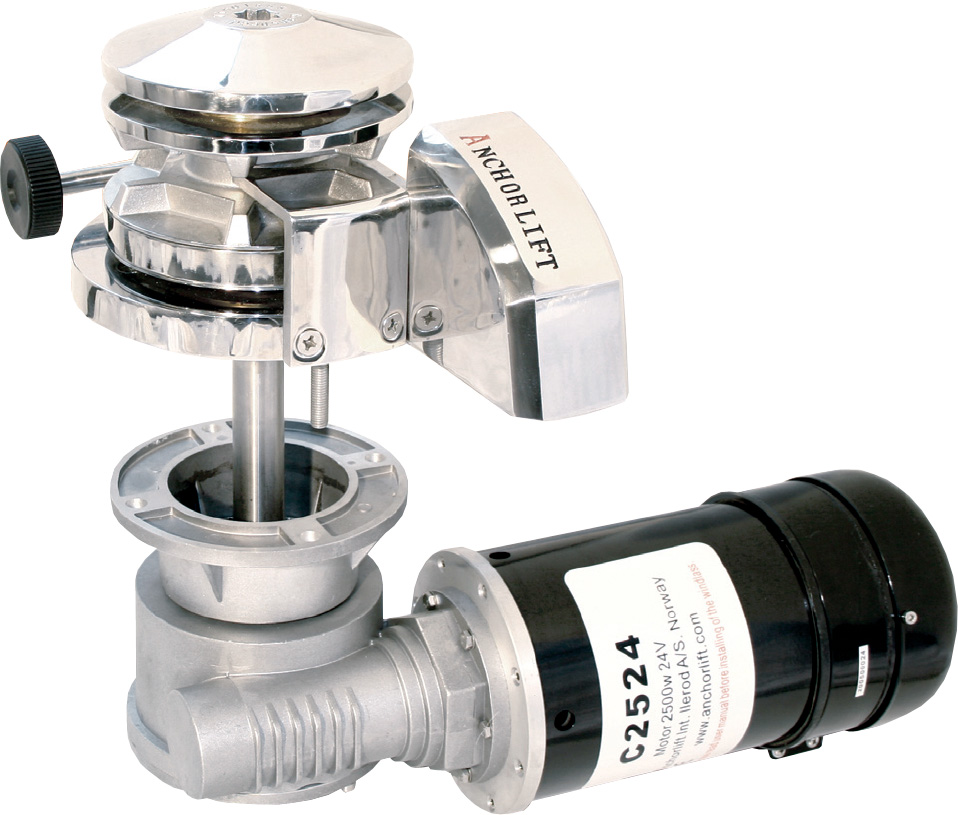

Low Profile model
Model
A2524
 A3024
Motor output
2500 watt
3000 watt
Voltage
24 volt
24 volt
Max Working Load
900 kgs / 1980 lbs
1000 kgs / 2200 lbs
Max Power Pull
2000 kgs / 4400 lbs
2200 kgs / 4800 lbs
Current Draw
100 A.
110 A.
Drop Speed pr min.
35 m (105 ft) / min.
35 m (105 ft) / min.
Alt. 1 Chain
10 mm (10x30) - 3/8" HT G4
10 mm (10x30) - 3/8" HT G4
Alt. 2 Chain
12/13 mm DIN 76
12/13 mm DIN 76
Alt. 3 Chain
14 mm - 1/2 HT G4
14 mm - 1/2 HT G4
Europe DIN 766
USA HT G4
USA HT G4
Weight: 53kg - 116lbs 55kg - 121lbs

Purchase this product

Mako 1500 windlass

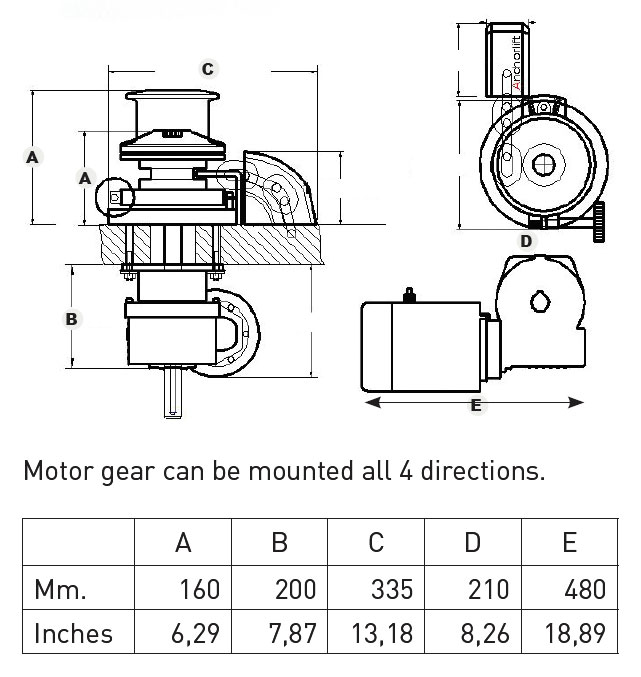

diagram icon

diagram icon

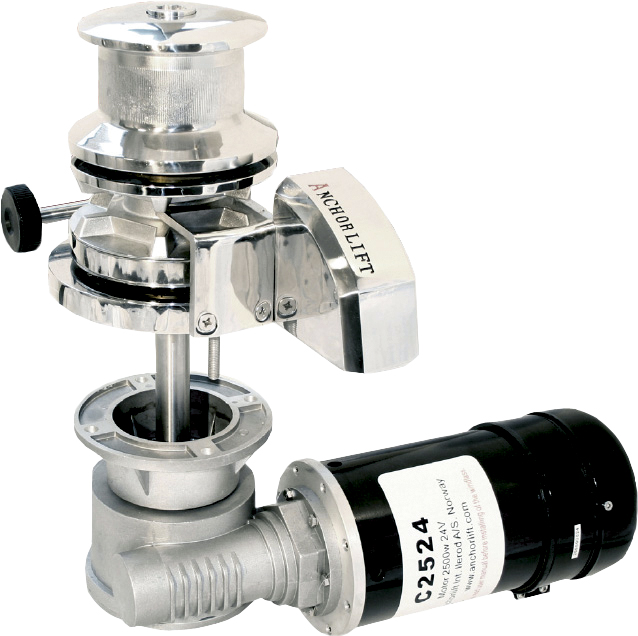

High Profile model
Model
A2524C
 A3024C
Motor output
2500 watt
3000 watt
Voltage
24 volt
24 volt
Max Working Load
900 kgs 1980 lbs
1000 kgs / 2200 lbs
Max Power Pull
2000 kgs / 4400 lbs
2200 kgs / 4800 lbs
Current Draw
100 A.
110 A.
Drop Speed pr min.
35 m min105 ft min.
35 m (105 ft) / min.
Alt. 1 Chain
10 mm (10x30) 3/8" HT G4
10 mm (10x30) - 3/8" HT G4
Alt. 2 Chain
12/13 mm DIN 766
12/13 mm DIN 76
Alt. 3 Chain
14 mm ISO - 1/2 HT G4
14 mm - 1/2 HT G4
Europe DIN 766
USA HT G4
USA HT G4
Weight: 55kg - 121lbs 57kg - 125lbs

Purchase this product

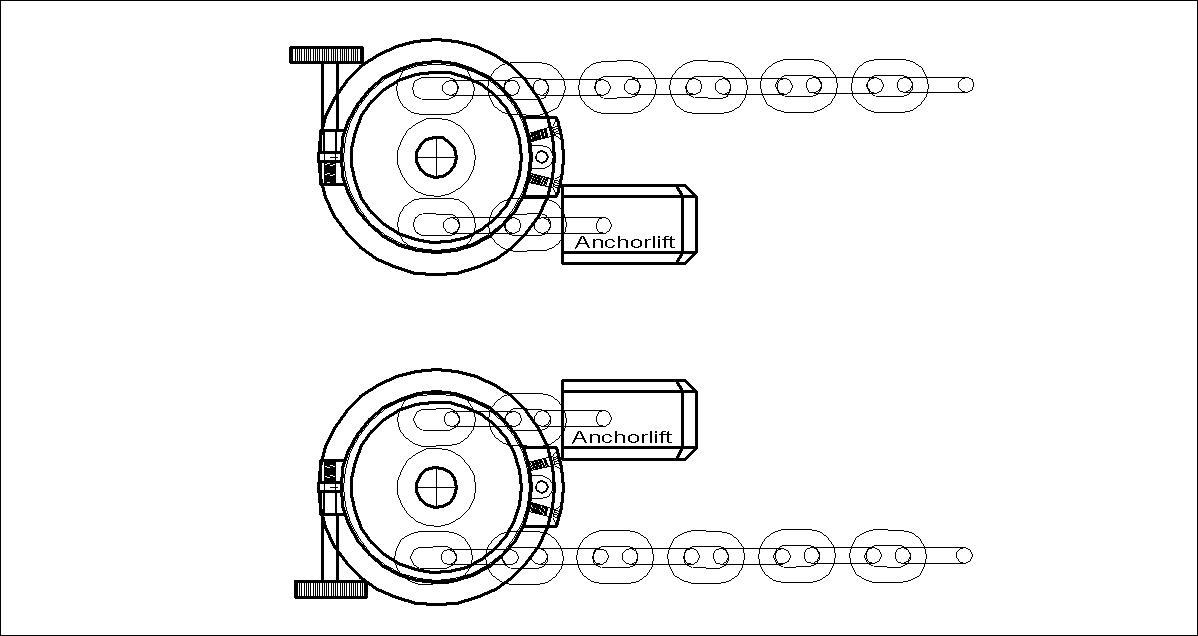

Twin Installation



Anchorlift seek ways to continually improv products, design and spesifications.
Products design and spesifications subject to change without notice.
