Anchorlift Chains & Ropes

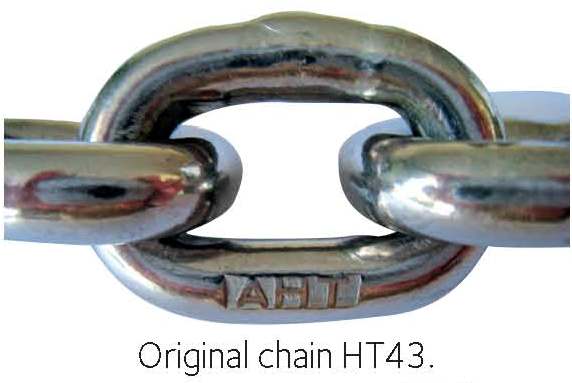

  Chains

Anchorlift chains are top quality DIN 766 and USA standar calibrated chain for use on Anchorlift anchor windlasses. For the windlass to run smoothly, the chain needs to match the gypsy. Anchorlift chains are adjusted and calibrated according to the DIN 766 and USA standard. Available in hot dipped galvanized steel and stainless steel (most sizes). The chain stowes itself in the windlass gypsy and the weight causes it to drop through the chain pipe. Chain is favoured by many cruising boaters, it is compact in size, highly abrasion - resistant and liea firmly on the bottom in most conditions.

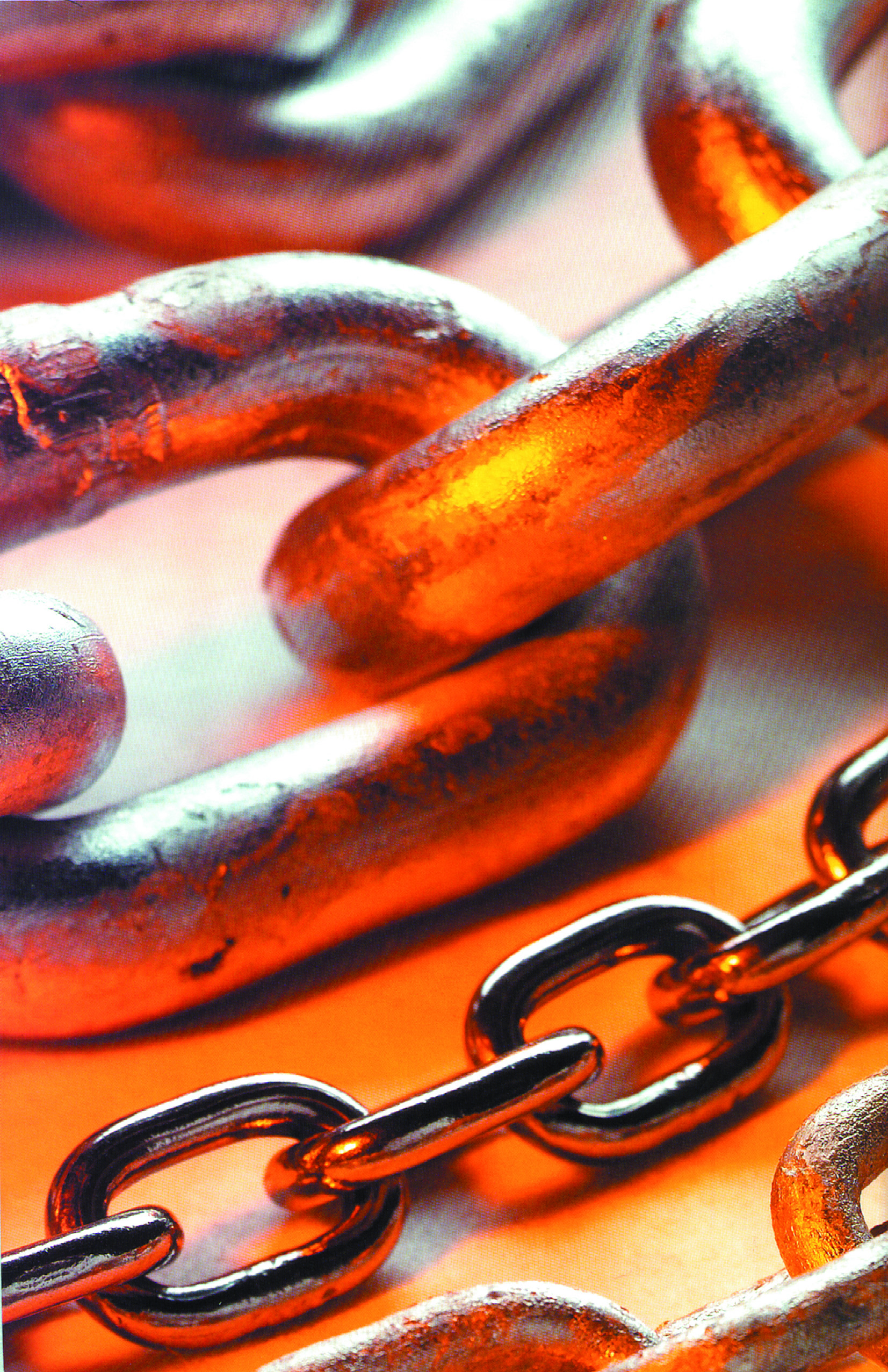

chains





Europe DIN766 chain  Hot Dip Galvanized / Stainless 316
Model Size Weight pr. mt Dimensions Inside Breaking load Fits windlass
2005 5 mm 0.52 kg

18,5 x 7 mm

1300 kg Barracuda series
2006 6 mm 0.81 kg

18,5 x 8 mm

1800 kg Barracuda series
2007 7 mm 1.06 kg

21 x 9 mm

2550 kg Barracuda/Dolphin series
2008 8 mm 1.4 kg

24 x 10 mm

3300 kg Dolphin / Mako series
2010 10 mm 2.34 kg

28 x 14 mm

5000 kg Mako / Dolphin series
2012 12 mm 3.2 kg

36 x 16 mm

8500 kg Aquarius series
2013 13 mm 4.02 kg

36 x 18 mm

8600 kg Aquarius series
2014 14mm 4,53kg

41 x 19mm

9500 kg Aquarius series

Standard Lenght: 50m  75m  100m


        USA standar chain Hot Dip Galv / Stainless 316

Model Size Weight pr ft. Dimentions Inside Breaking Load Fits Windlass
HT1/4" 1/4" 0,74 Lbs 0,845 X 0,41" 6700 Lbs.       Barracuda / Dolphin
HT5/16" 5/16" 1,03 Lbs 1,03 X 0,51" 8900 Lbs Dolphin / Mako

HT3/8"

3/8"   1,48 Lbs 1,22 X 0,59" 13500 Lbs Mako / Aquarius

HT1/2"

1/2" 2,57lbs 1,59 X 0,76" 25000 Lbs Aquarius

Standard Lenght: 150ft  200ft  250ft  300ft



Purchase this product

  Chain connecting link


Model Number Breaking Load Chain size
924407 1700 kgs / 3740 lbs 7mm / 1/4"
924408

2500 kgs / 5500 lbs

8mm / 5/16"

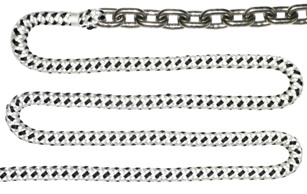

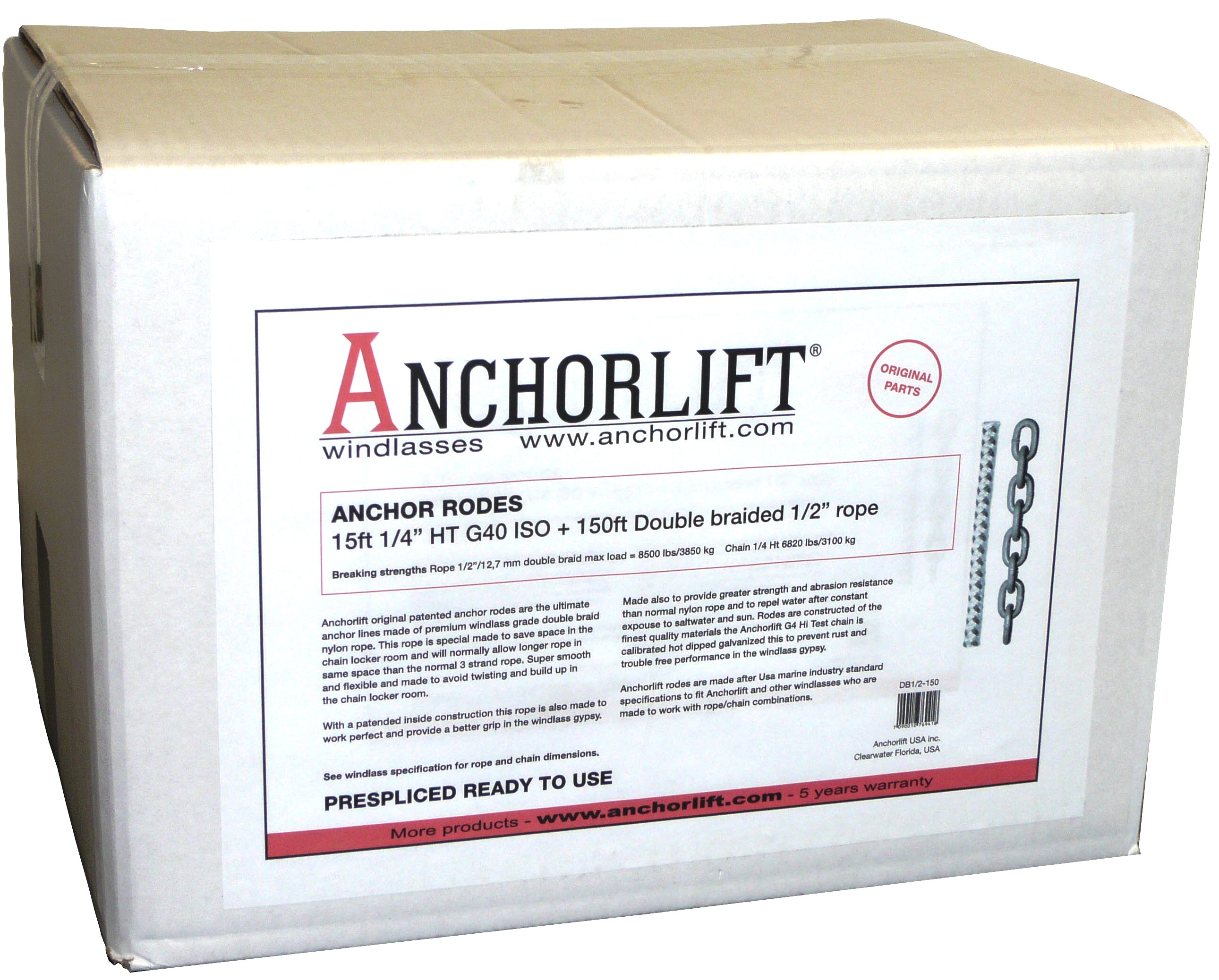

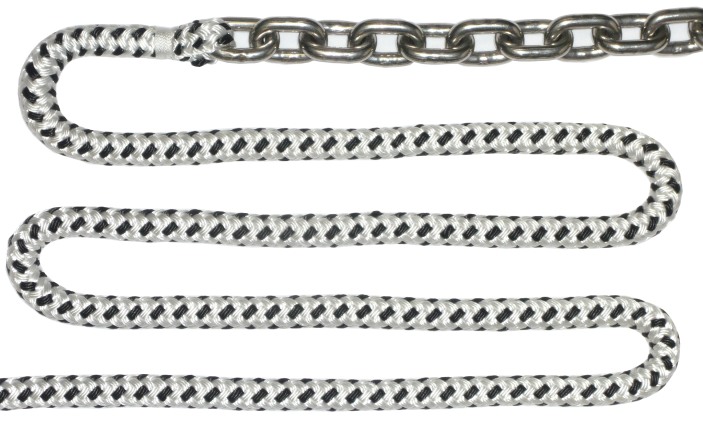

  Double Braid Rope/Chain Combination
New high quality Double Braid 24 plate super soft space saving rope/chain combination.
The inner core is special designed to keep the rope round and better grip to avoid slippage in gypsy.
Made with nylon rope, ready to use. Spliced with Anchorlift´s original hot dip galvanized HT chain or  Stainless Steel HT chain.

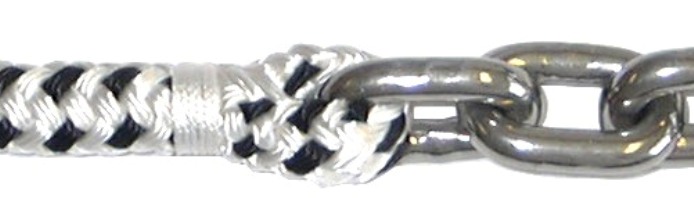

New Pat. Pending soft compact splice between rope and chain that makes this rodes your best choice  for trouble free operation.
Available in 4 different sizes and lengths.











DB1/2-150 on Barracuda Alu 900
Vertical windlass


DB1/2-150 on Stingray 900
Horizontal windlass



            New! Pat. Pending
 24 Plated Double Braid Rope/Chain Combination

                 With Hot Dip Galvanized Chain

Model Number Rope Length Chain Length Total Fits Windlass

DB1/2-150

1/2" /12mm

150ft / 45m

1/4" / 7mm

15ft / 4,5m

165ft / 50m

Barracuda / Stingray

DB1/2-200

1/2" / 12mm

200ft / 60m

1/4" / 7mm

15ft / 4,5m

215ft / 65m

Barracuda / Stingray

DB1/2-250

1/2" / 12mm

250ft / 75m

1/4" / 7mm

15ft / 4,5m

265ft / 80m

Barracuda / Stingray

DB1/2-300

1/2" / 12mm

300ft / 90m

1/4" / 7mm

20ft / 6m

320ft / 97m

Barracuda / Stingray

DB9/16-1/4-250

9/16" / 14mm

250ft / 83m

1/4" / 7mm

15ft / 4,5m

265ft / 80m

Barracuda  900
Stingray 900

DB9/16-150

9/16" / 14mm

150ft / 45m

5/16" / 8mm

15ft / 4,5m

165ft / 50m



DB9/16-200

9/16" / 14mm

200ft / 60m

5/16" / 8mm

15ft / 4,5m

215ft / 65m



DB9/16-250

9/16" / 14mm

250ft / 75m

5/16" / 8mm

15ft / 4,5m

265ft / 80m



DB9/16-300

9/16" / 14mm

300ft / 90m

5/16" / 8mm

20ft / 6m

320ft / 97m



DB5/8-150

5/8" / 16mm

150ft / 45m

5/16" / 8mm

15ft / 4,5m

165ft / 50m

Dolphin / Mako 1200

DB5/8-200

5/8" / 16mm

200ft / 60m

5/16" / 8mm

15ft / 4,5m

215ft / 65m

Dolphin / Mako 1200

DB5/8-250

5/8" / 16mm

250ft / 75m

5/16" / 8mm

20ft / 6m

270ft / 82m

Dolphin / Mako 1200

DB5/8-300

5/8" / 16mm

300ft / 90m

5/16" / 8mm

20ft / 6m

320ft / 97m

Dolphin / Mako 1200

DB3/8-150

5/8" / 16mm

150ft / 45m

3/8" / 10mm

15ft / 4,5m

165ft / 50m

Mako 1500

DB3/8-200

5/8" / 16mm

200ft / 60m

3/8" / 10mm

15ft / 5m

215ft / 65m

Mako 1500

DB3/8-250

5/8" / 16mm

250ft / 75m

3/8" / 10mm

20ft / 6m

270ft / 82m

Mako 1500

DB3/8-300

5/8" / 16mm

300ft / 90m

3/8" / 10mm

20ft / 6m

320ft / 97m

 Mako 1500

                      With ASIS 316 Stainless Steel Chain

SSDB1/2-150

1/2" / 12mm)

150ft / 45m

1/4" / 7mm

15ft / 4,5m

165ft / 50m

Barracuda / Stingray

SSDB1/2-200

1/2" / 12mm 200ft / 65m 1/4" / 7mm 15ft / 4,5m 215ft / 65m Barracuda / Stingray

SSDB9/16-200

9/16" / 14mm

200ft / 60m

5/16" / 8mm

15ft / 4,5m

215ft / 65m

Dolphin 1000

SSDB5/8-200

5/8" / 16mm

200ft / 60m)

5/16" / 8mm

15ft / 4,5m

215ft / 65m

Dolphin / Mako 1200
SSDB5/8-250 5/8" / 16mm 250ft / 75m 5/16" / 8mm 20ft / 6m 270ft / 82m Dolphin / Mako 1200
SSDB3/8-200 5/8" / 16mm 200ft / 60m 3/8" / 10mm 15ft / 4,5m 215ft / 65m Mako 1500

SSDB3/8-250

5/8" / 16mm

250ft / 75m

3/8" / 10mm

20ft / 6m

270ft / 82m

Mako 1500
Purchase this product

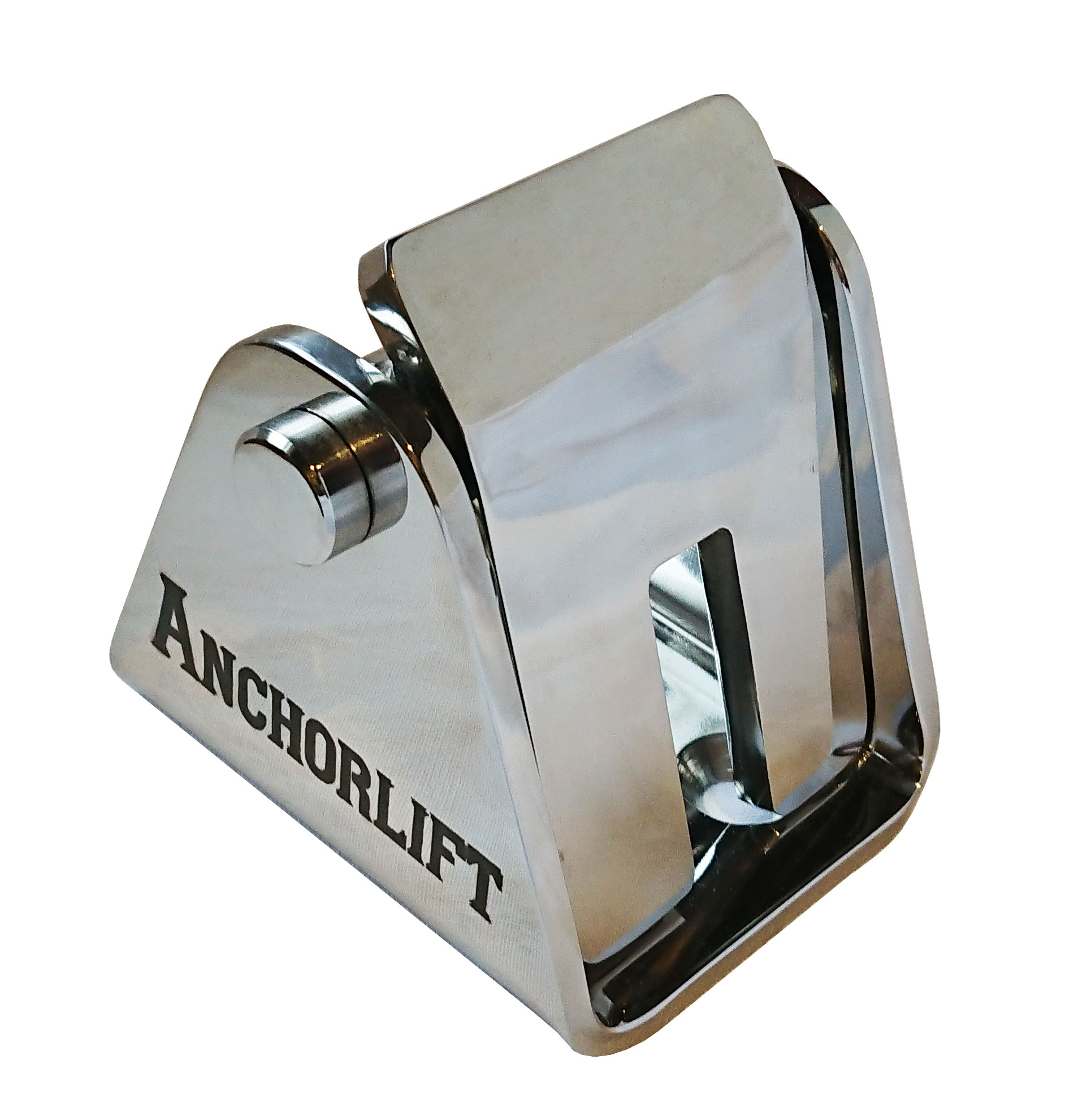

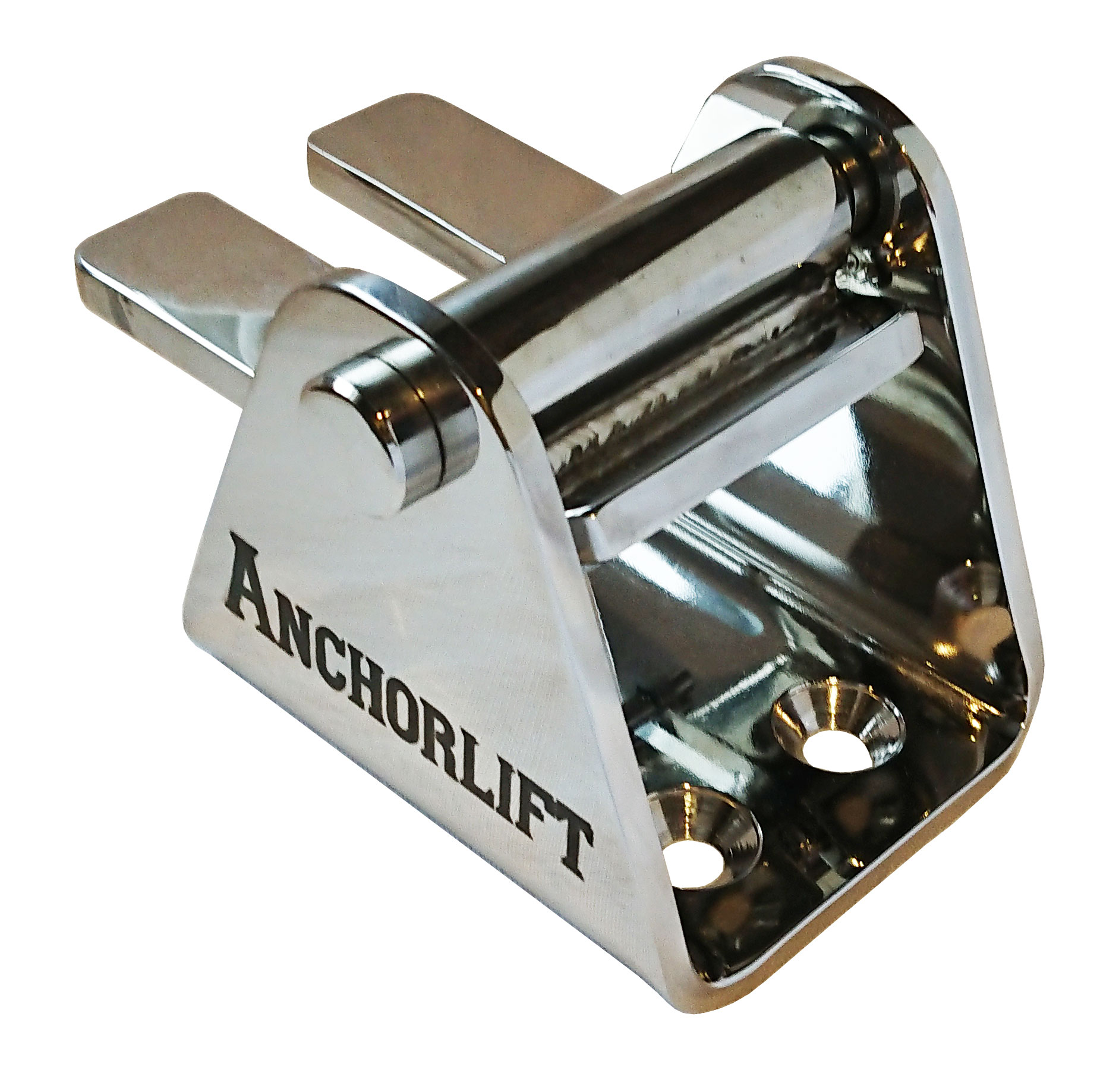

  Chain Stopper
Works with your anchor rollers to take the tension off the windlass by locking the chain. Handles 7 - 10 mm (1/4 - 3/8") chain. Included a convinient foot tab for safe and easy operation. Mounted with 4 screw holes to increase breaking strength. Made in mirror polished stainless steel.
Anchorlift chainstopper

Model Breaking Load Fits Chain Sizes
91404   2500 kgs (5,500 lbs)   7-10 mm (1/4" - 3/8")

diagram icon

Purchase this product

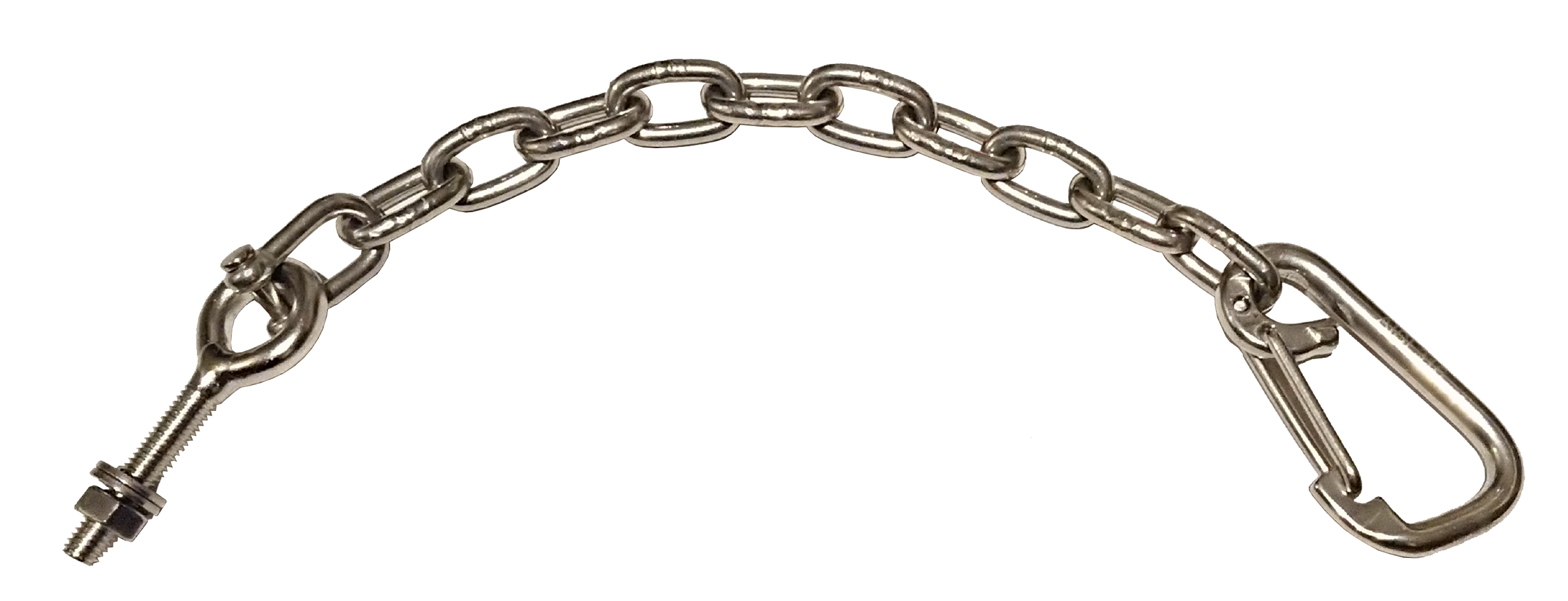

  Anchor Safety Strap

Secure the anchor while the boat is under navigation.

Model Number Breaking Load Chain size
91406 220 kgs / 490 lbs 6 mm (1/4")
91407 260 kgs / 570 lbs 7-8 mm (1/4"-5/16")
91410 460kgs / 1010 lbs 10-13 mm (3/8"-1/2")





Anchorlift seek ways to continually improv products, design and spesifications.
Products design and spesifications subject to change without notice.
