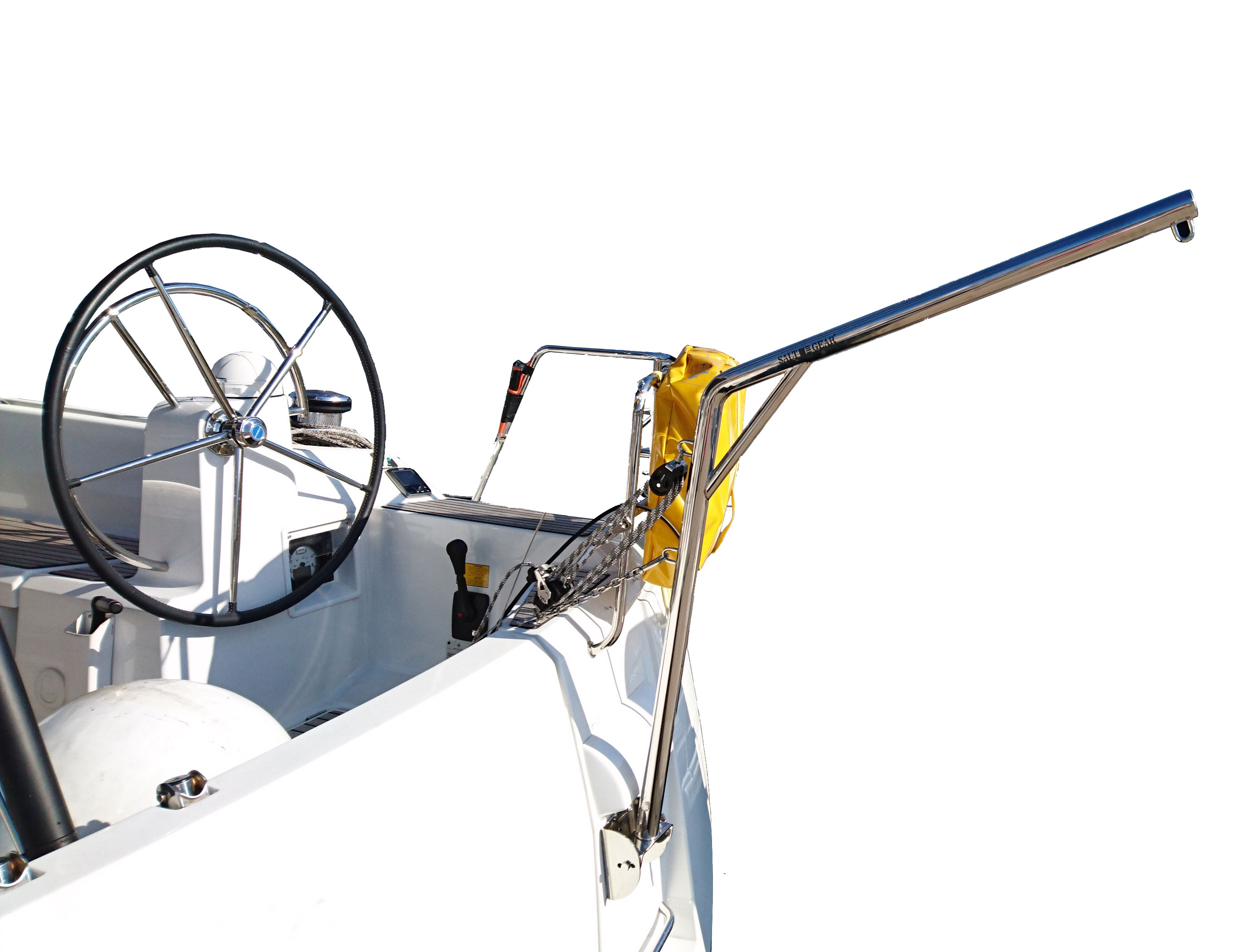

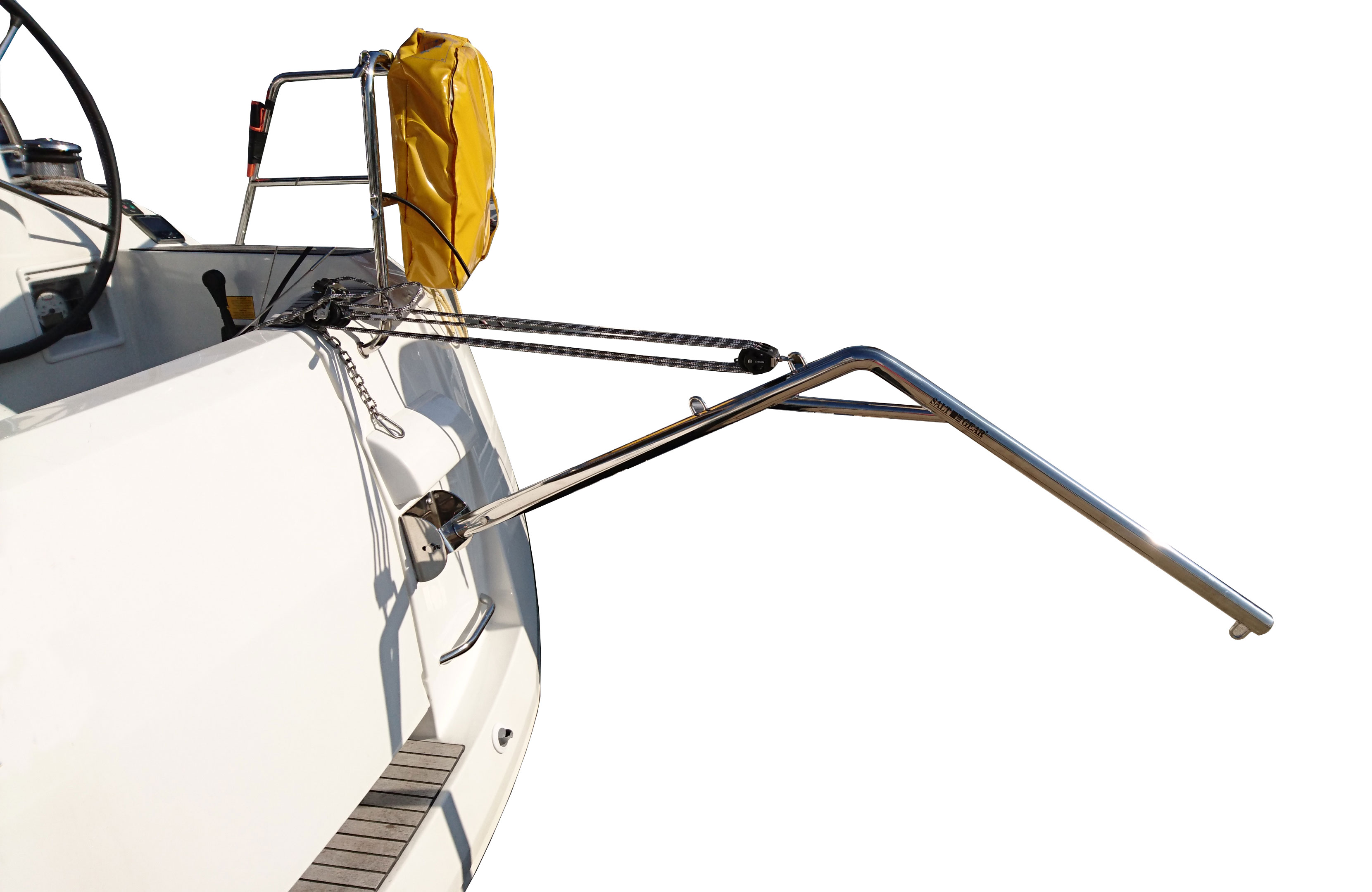

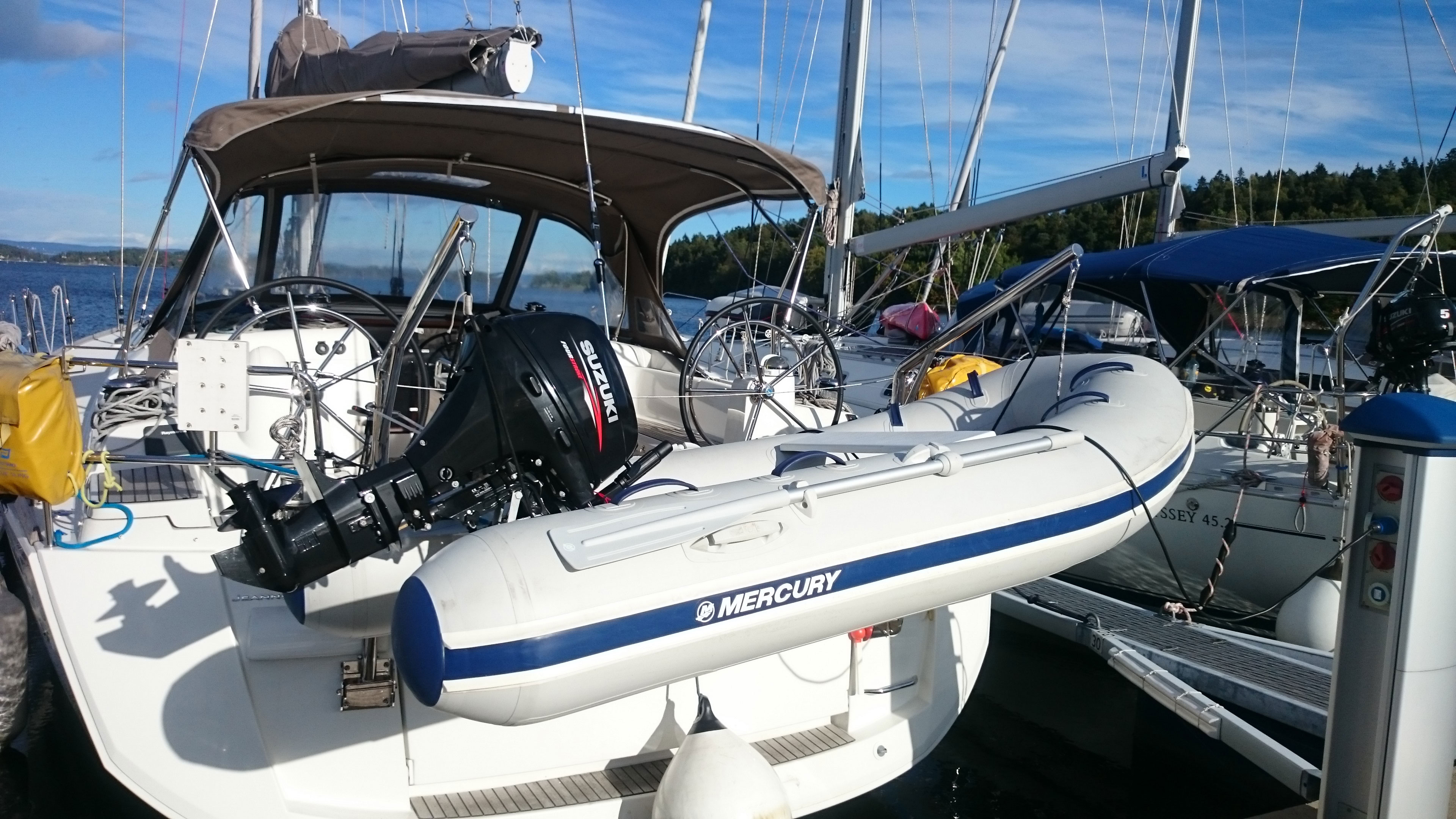

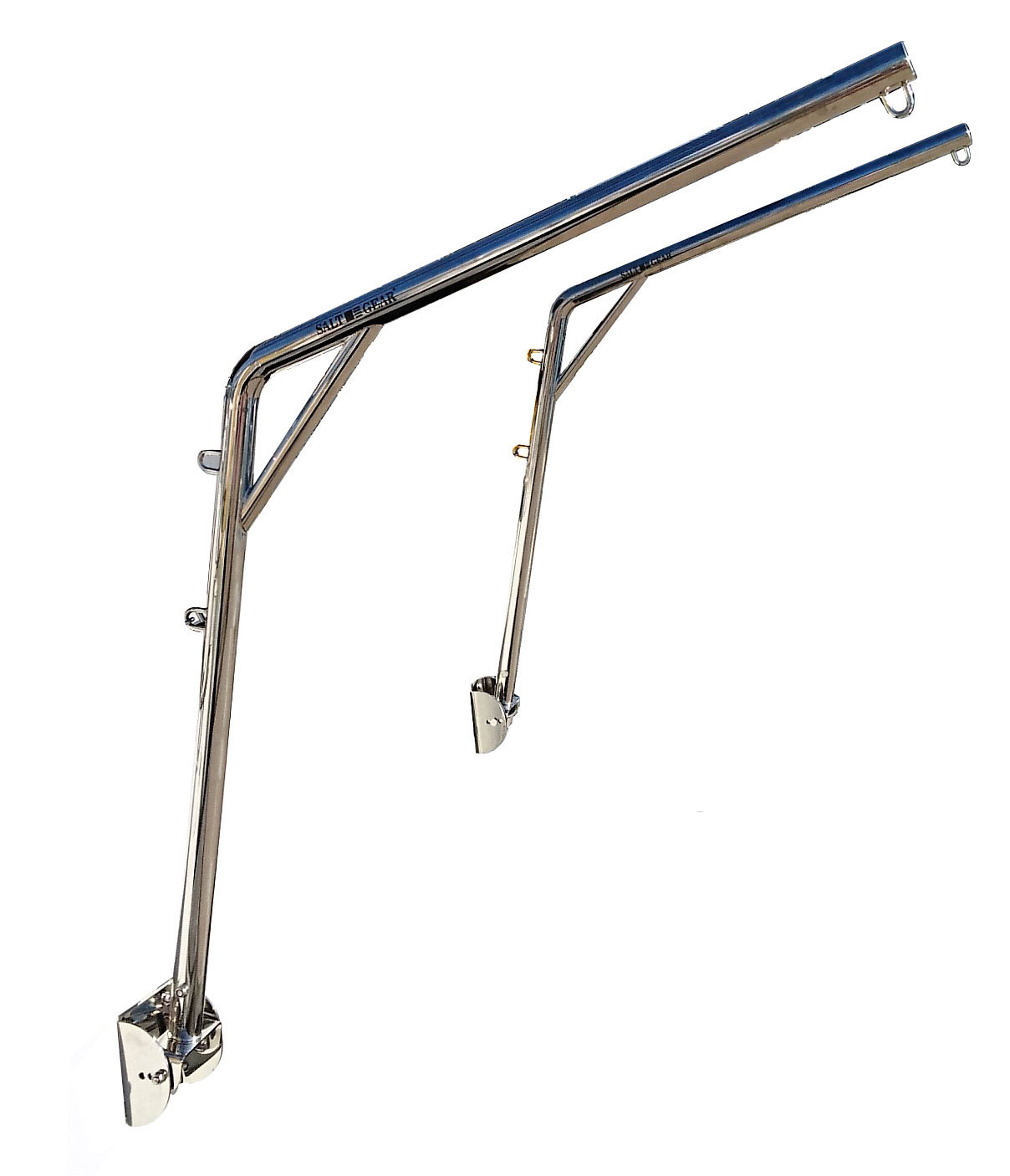

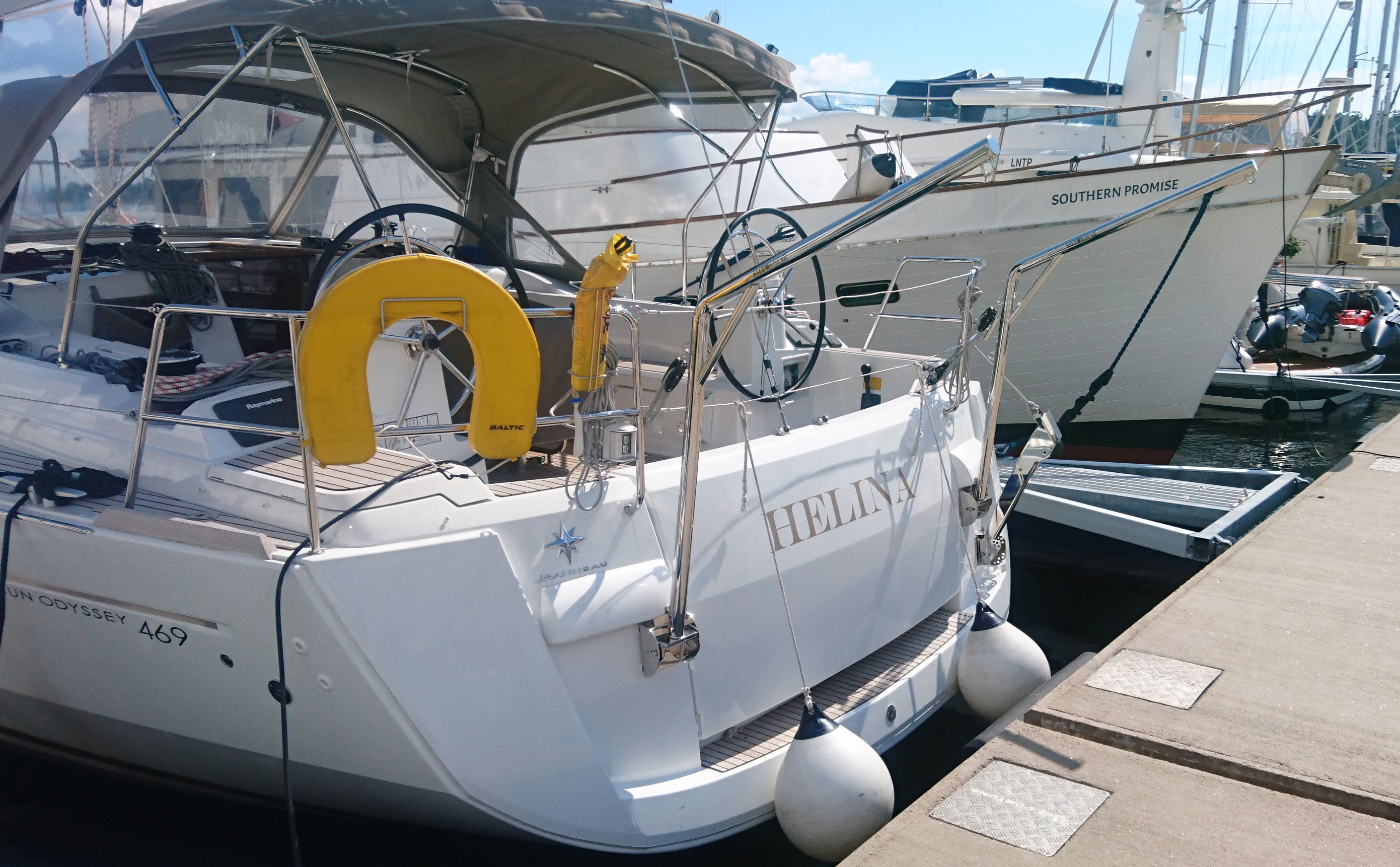

DS3
Dinghy davits for Sail and
Motor boats
|
|
|
Easy to
use universal davits for most sail and motor boats. Dinghys up to
300cm - 10ft model DS3 to 100kg DS3+ to 150kg.
Swingable when not in use and removable only by one bolt leaving
just the brakets on boat.
Comes as a kit with
pulleys and ropes. 50mm tube, high polish stainless steel 316L. Made
in Europe.
|
|

|
|
Model
|
Max dinghy
|
Max Davit Load
|
Ideal for boat
size
|
|
DS3
|
300cm - 10ft
|
150kg
|
30ft to 55ft
|
|
Model
|
Max dinghy
|
Max Davit Load
|
Ideal for boat
size
|
|
DS3+ |
300cm - 10ft
|
200kg
|
30ft to 55ft
|

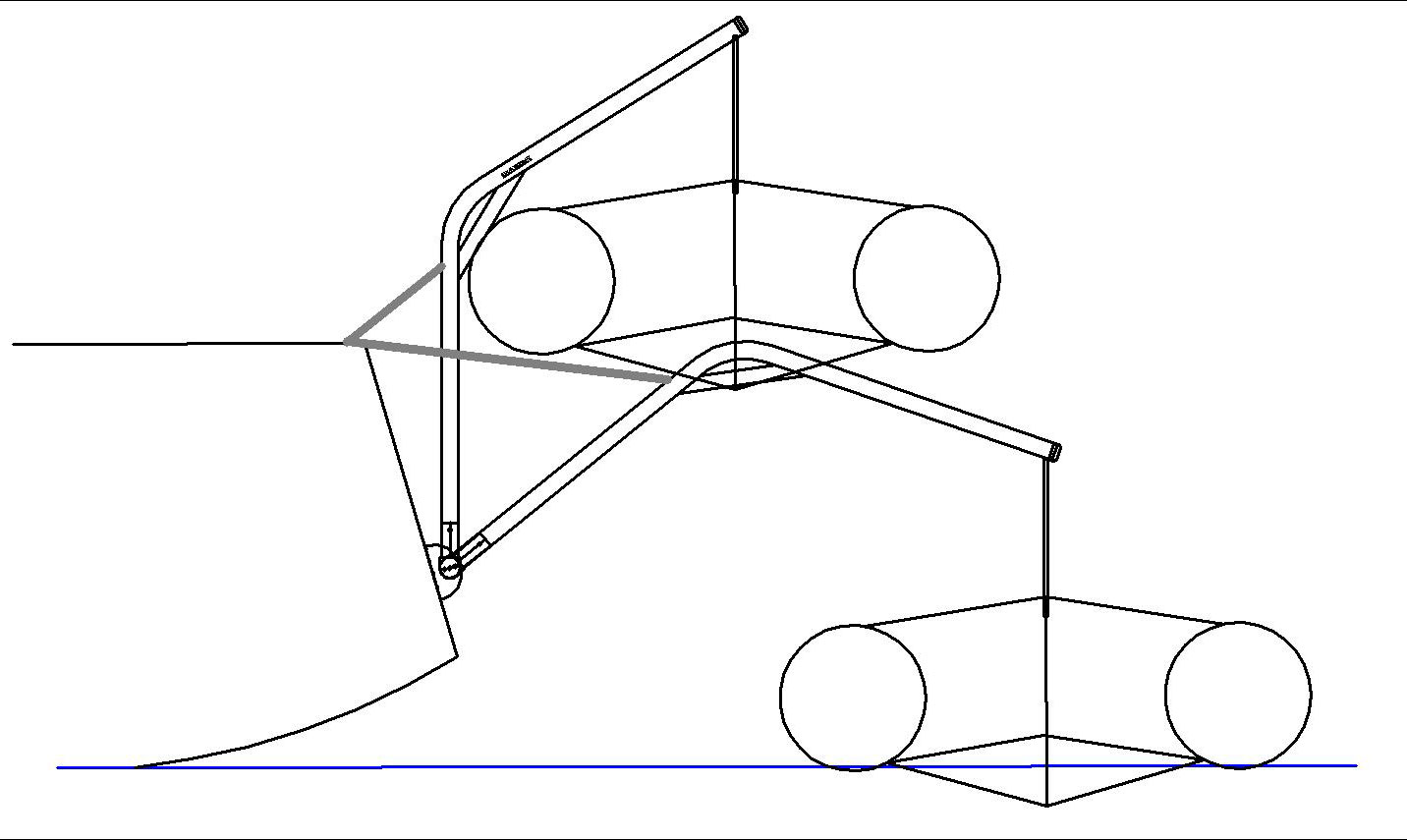

DS3 and DS3+ diagram.
 |

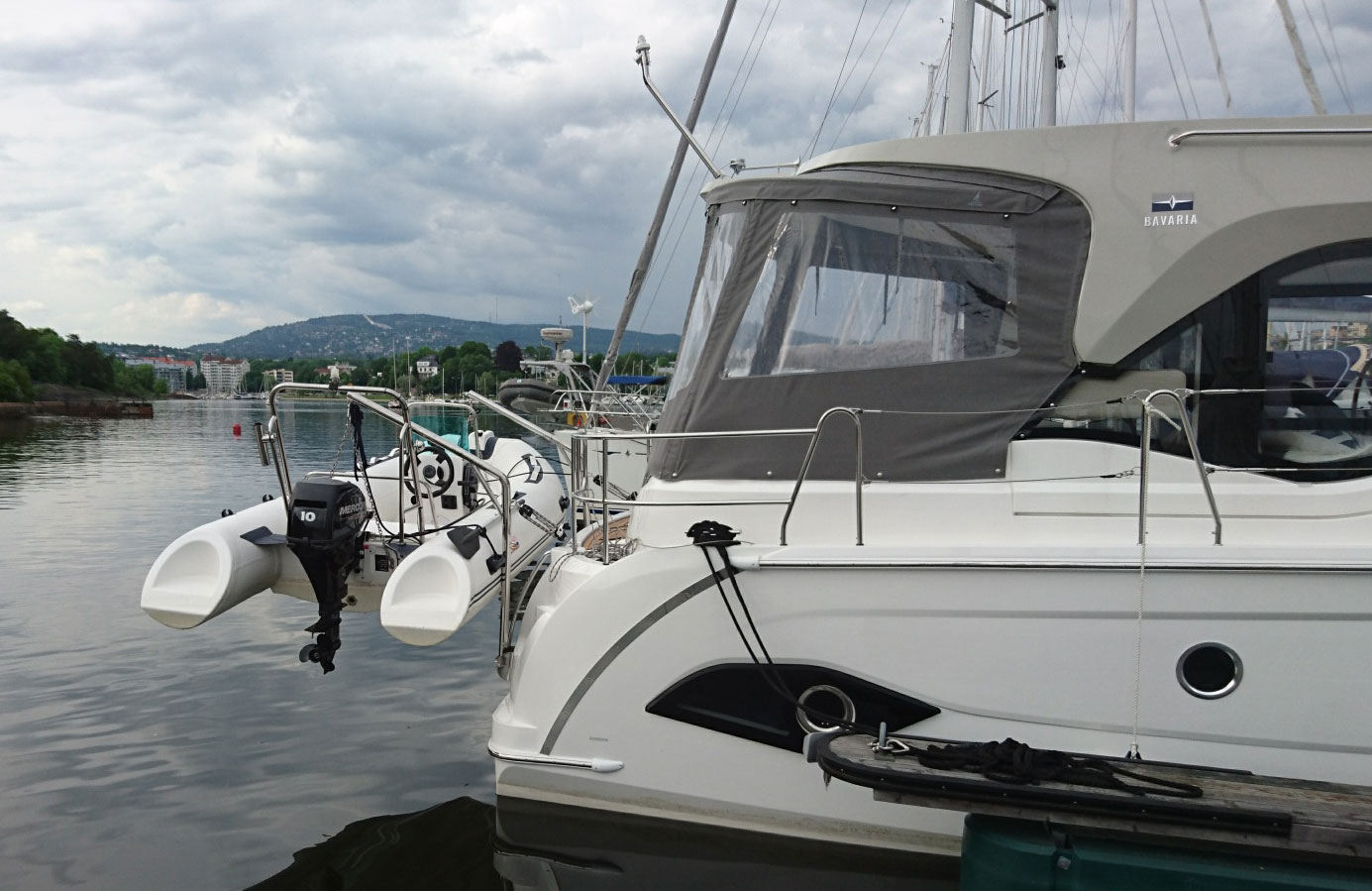

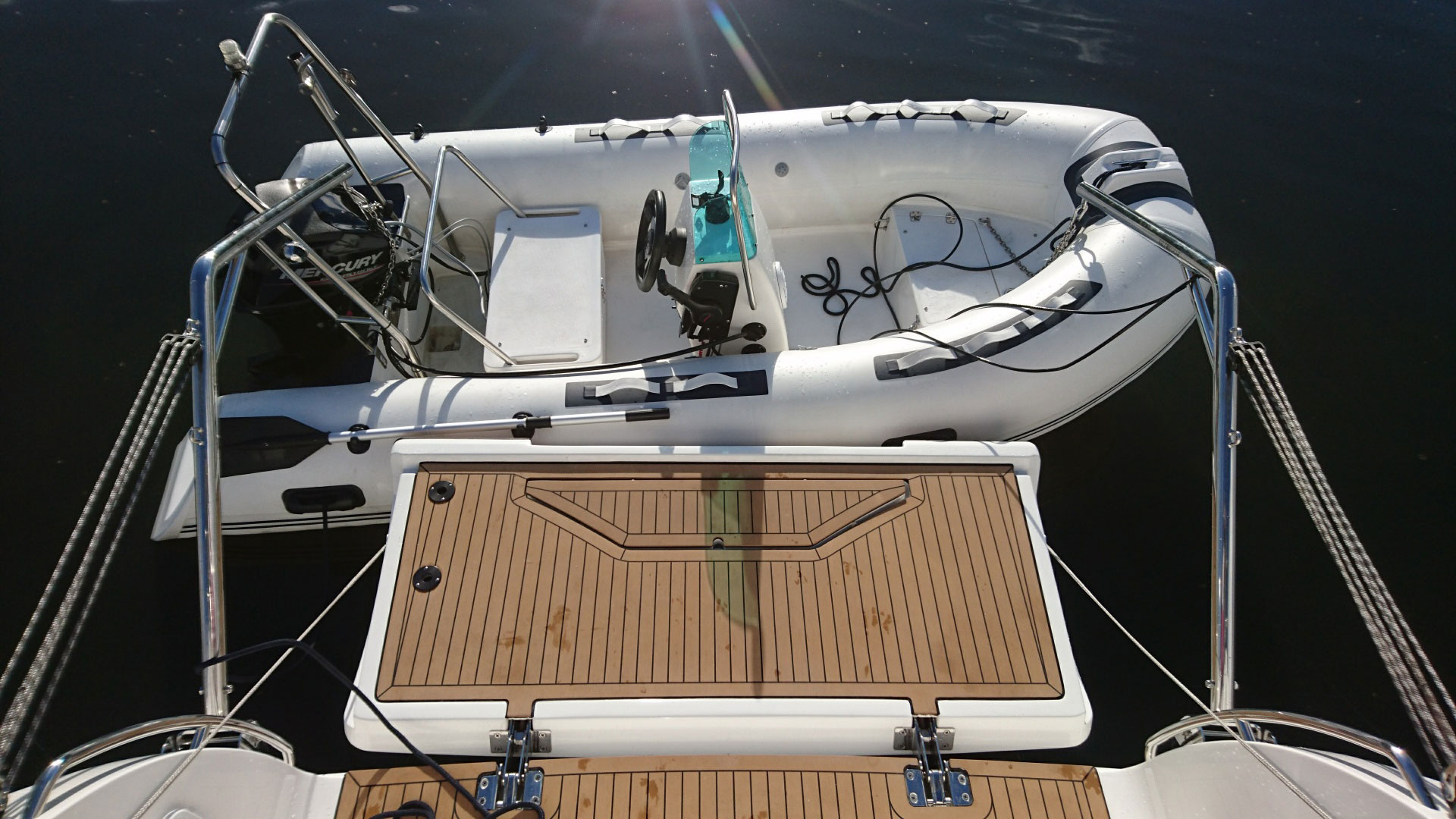

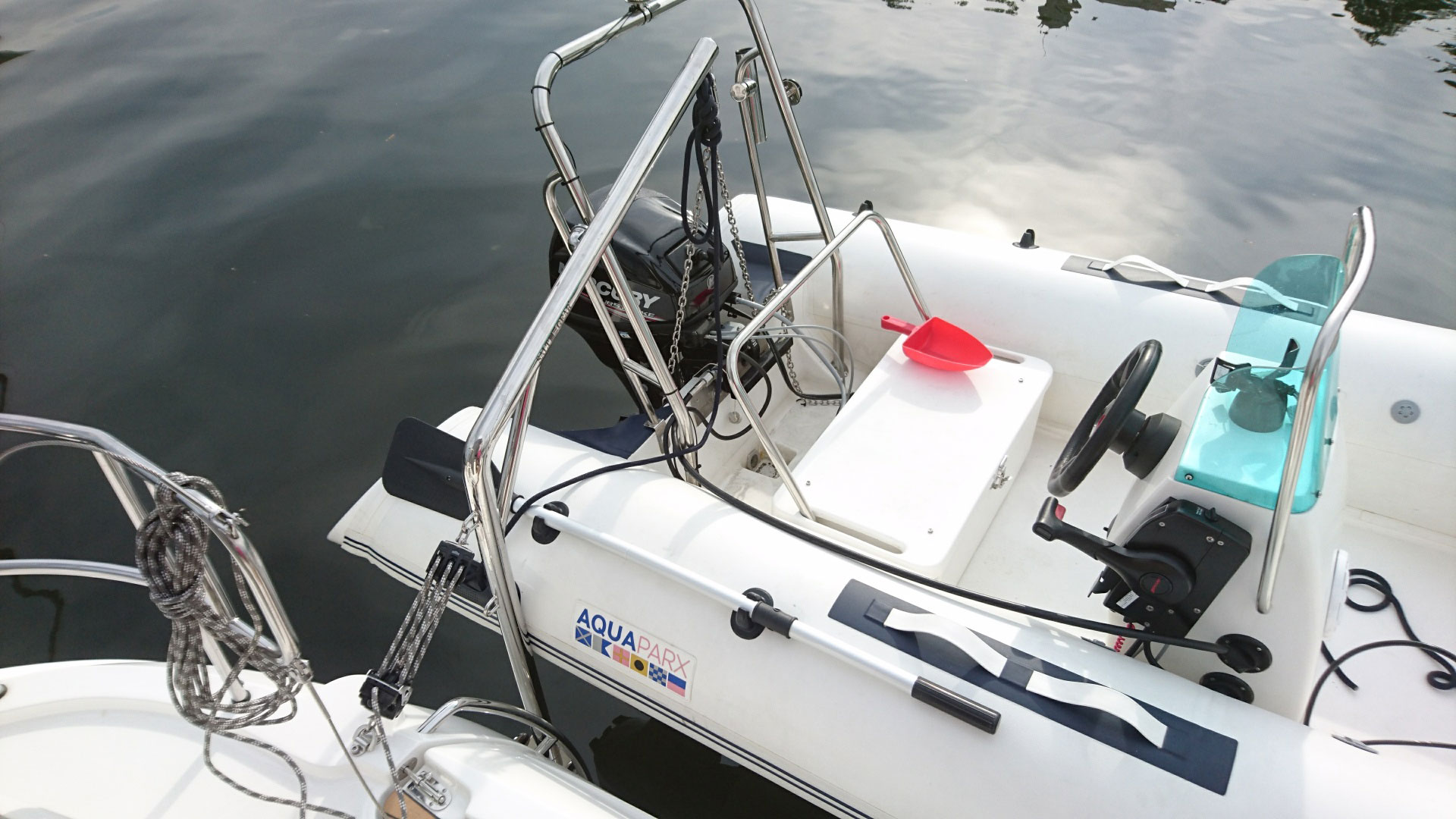

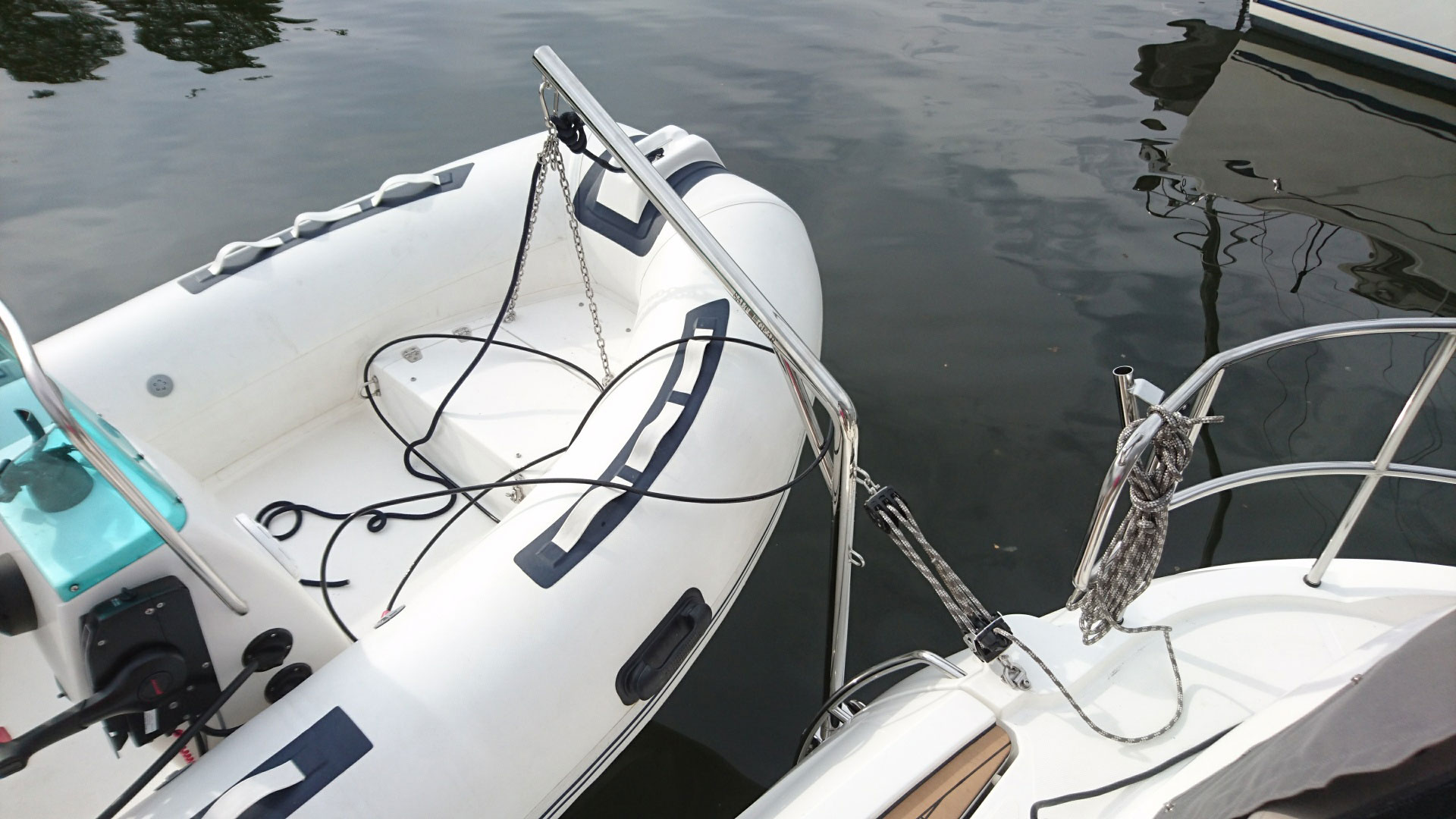

| Bavaria E40 |
|
  |
|

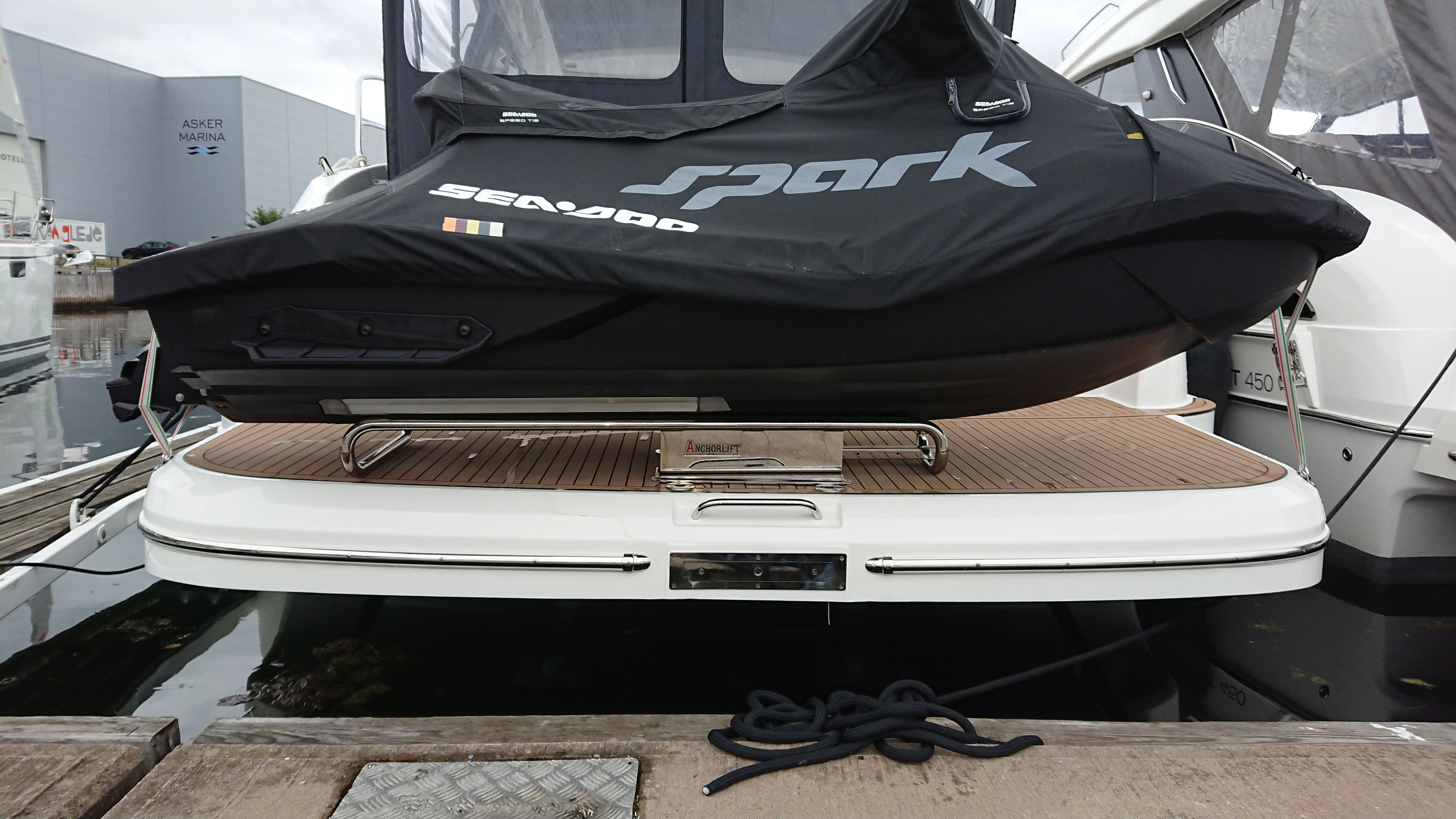

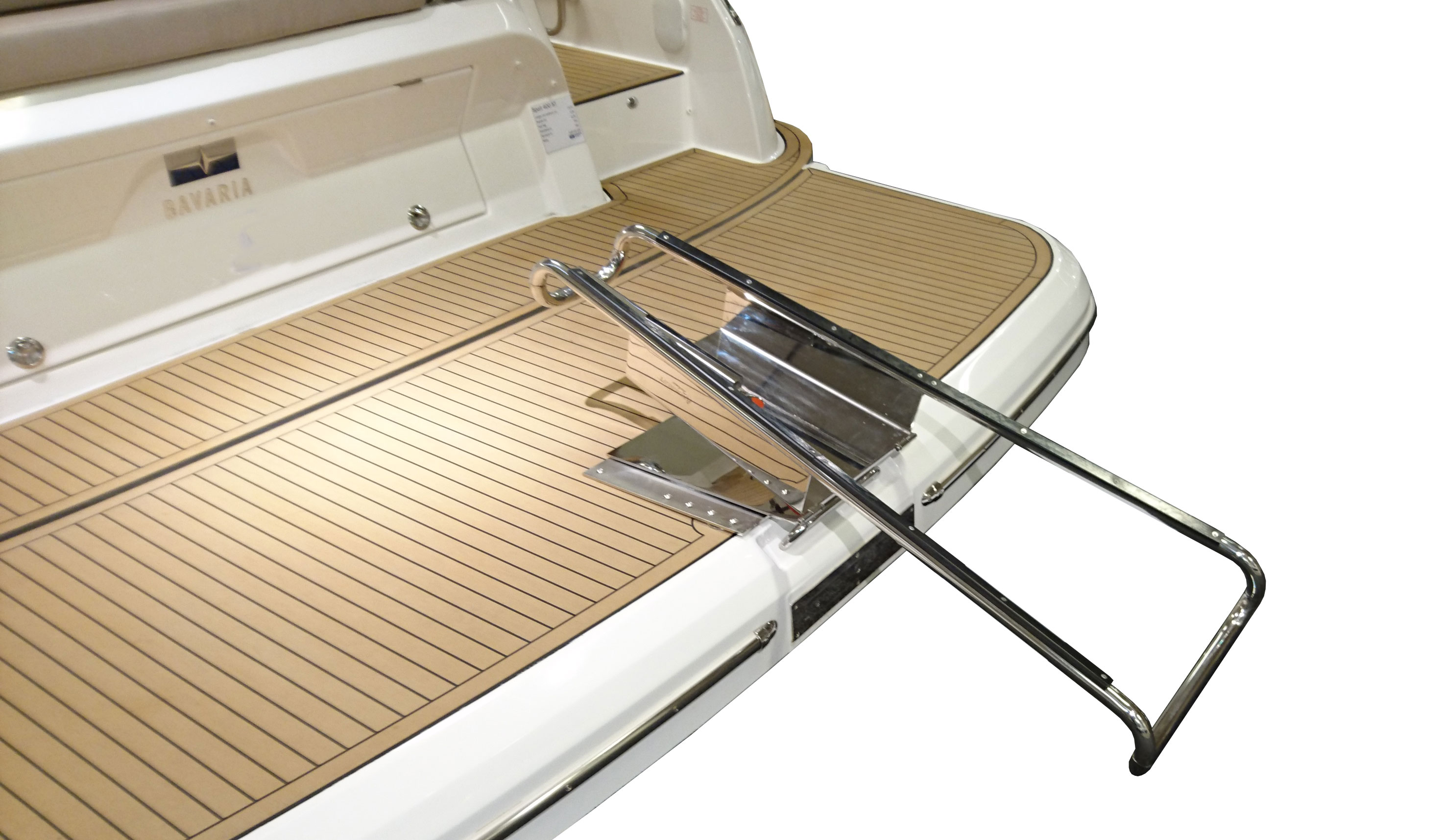

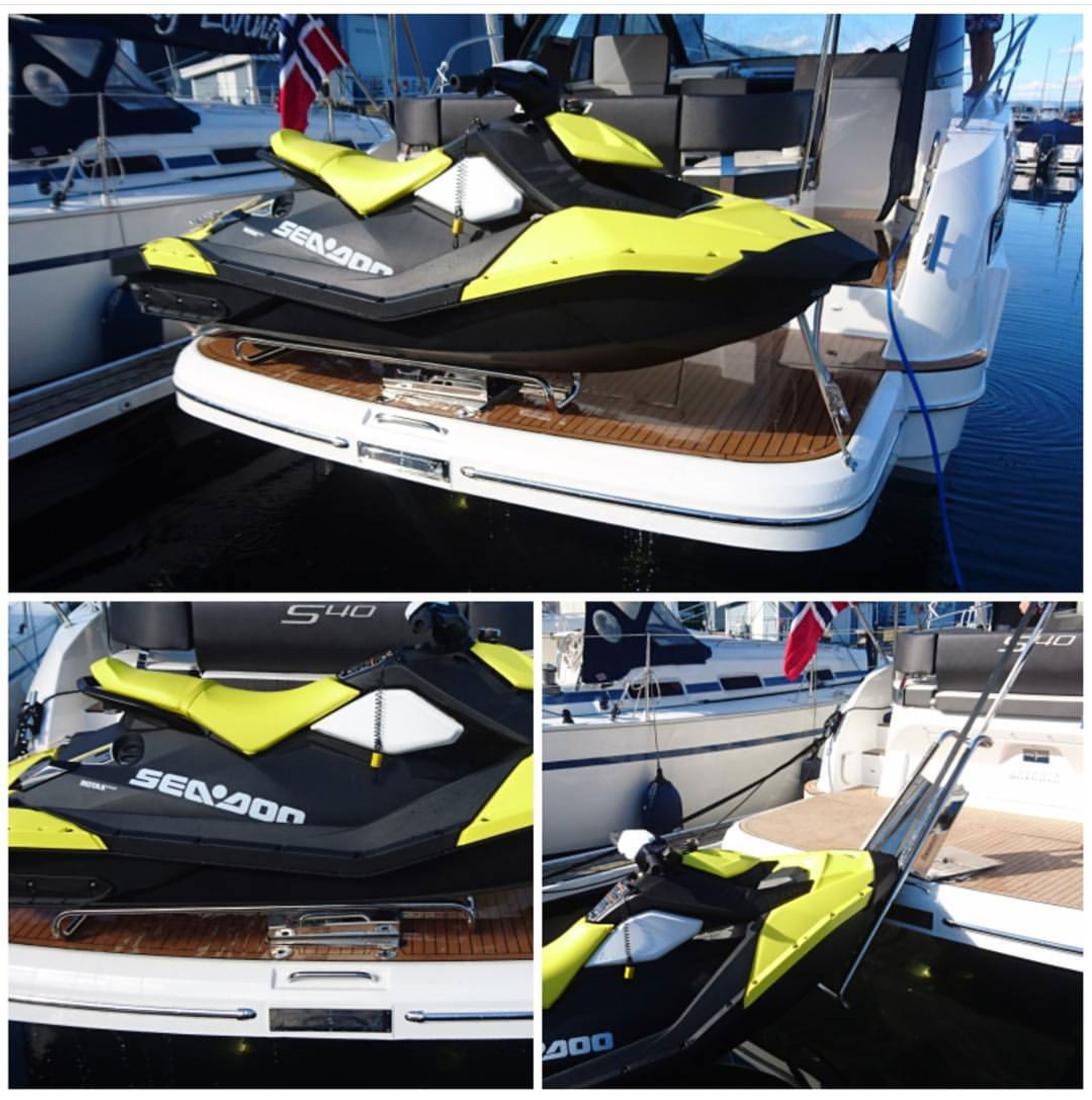

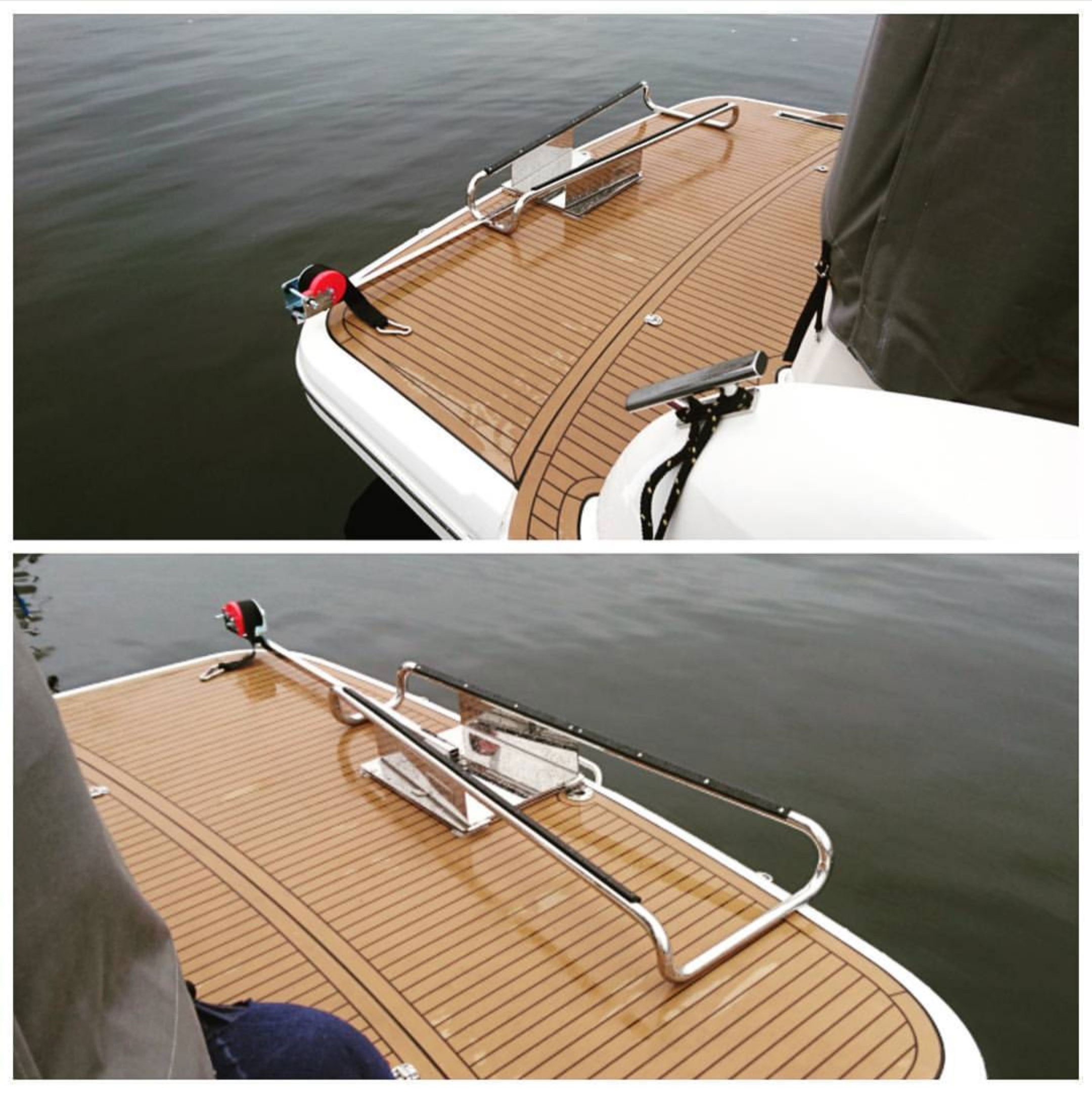

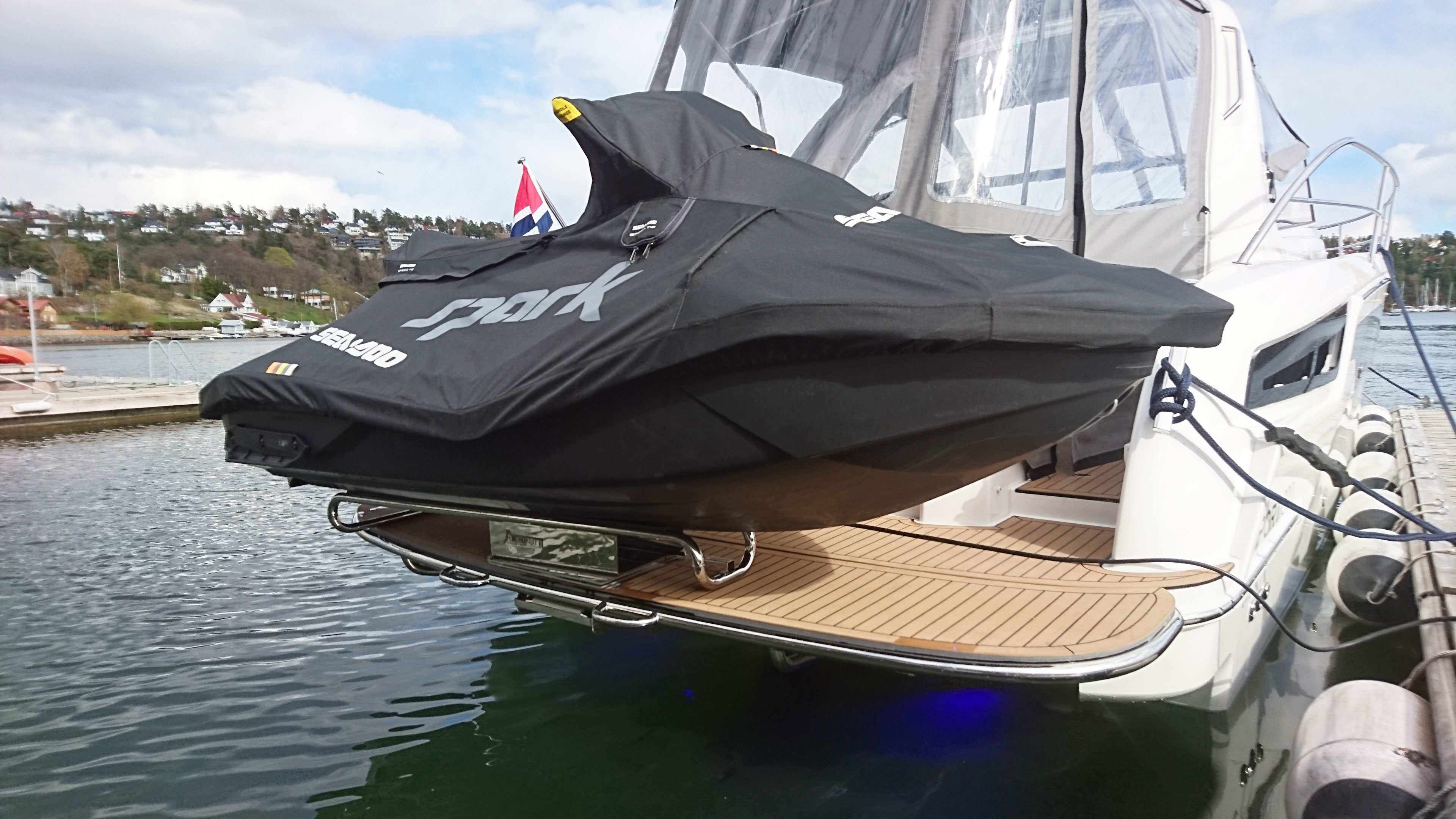

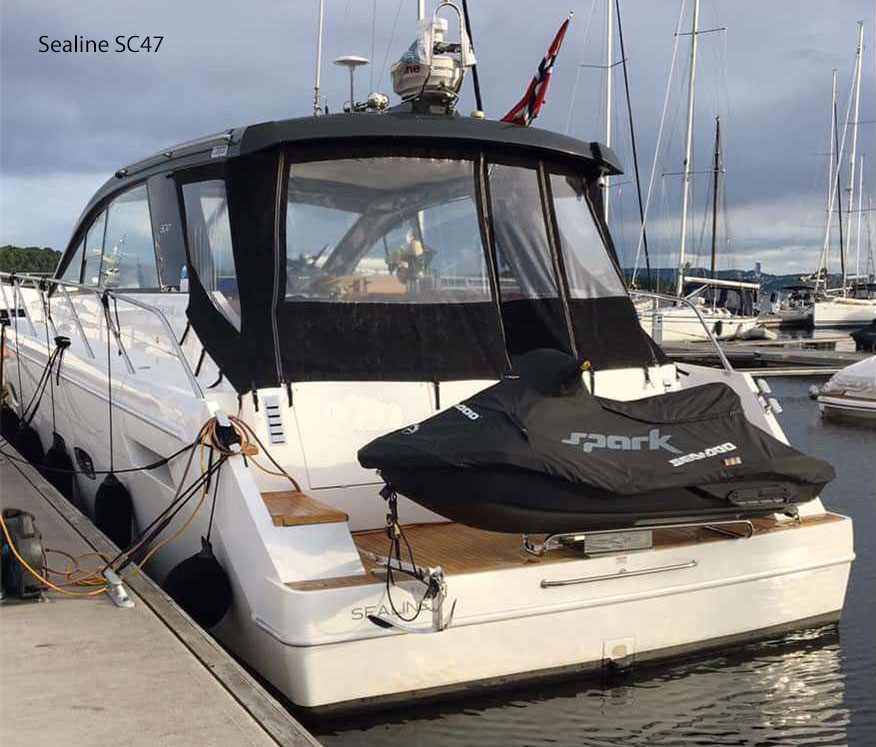

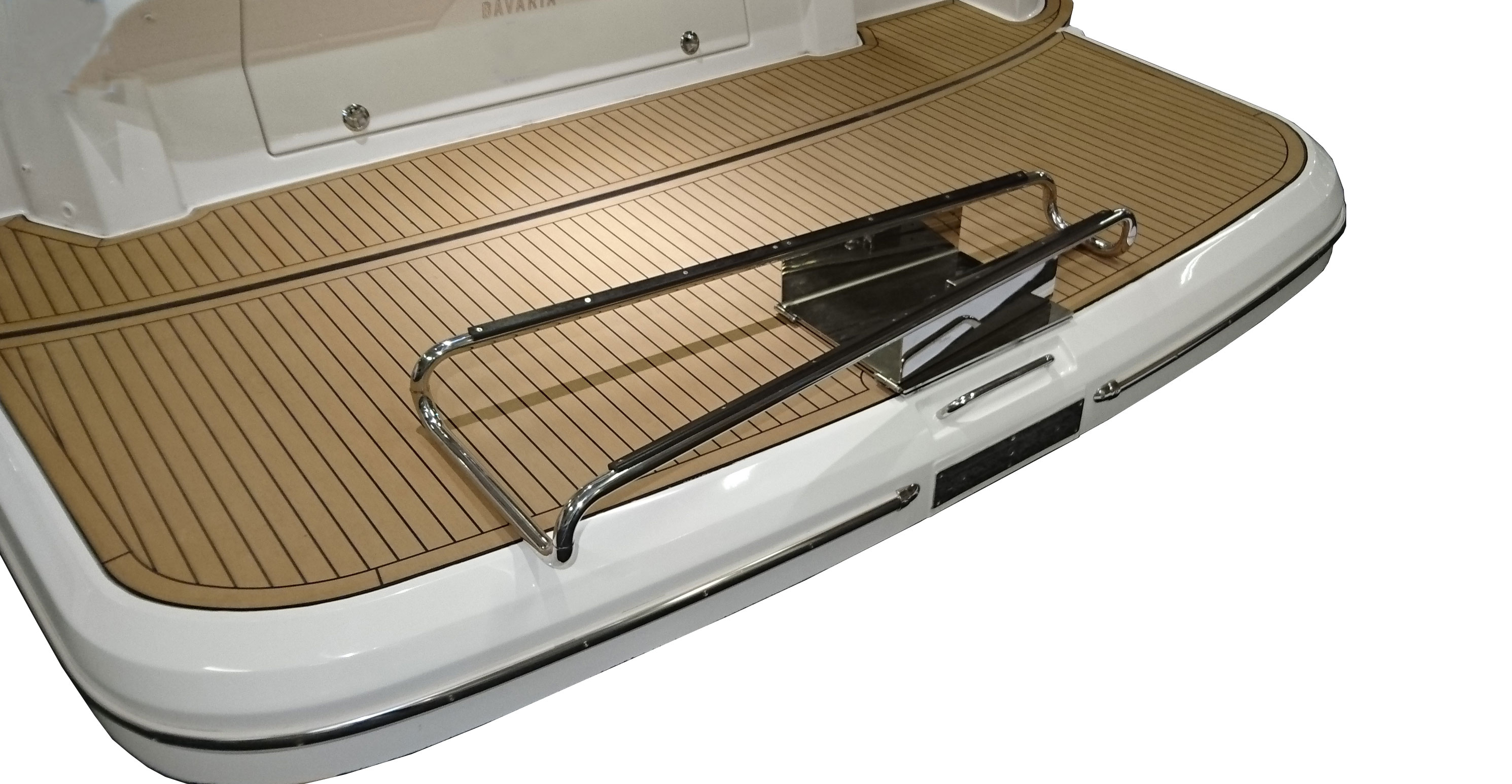

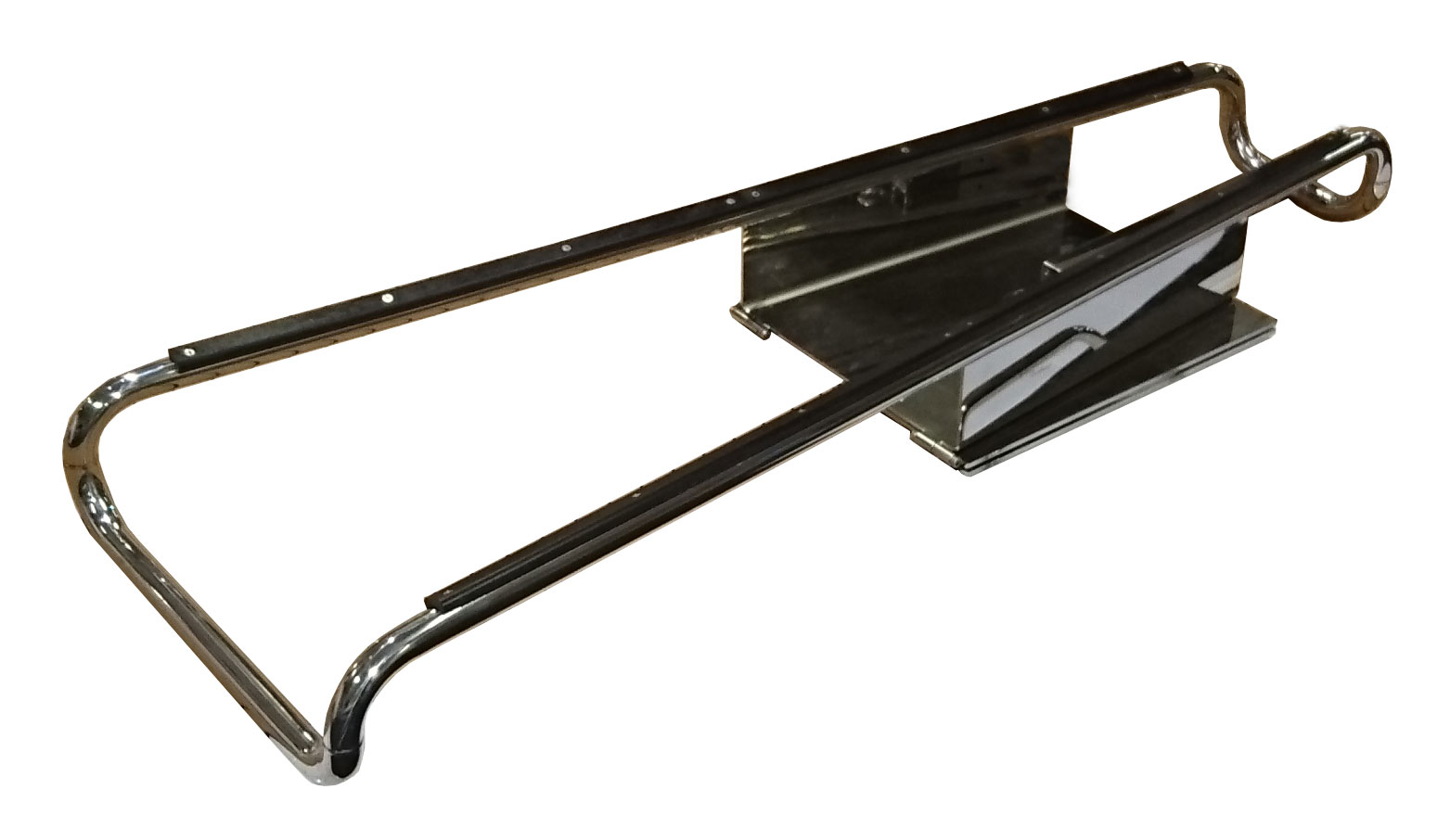

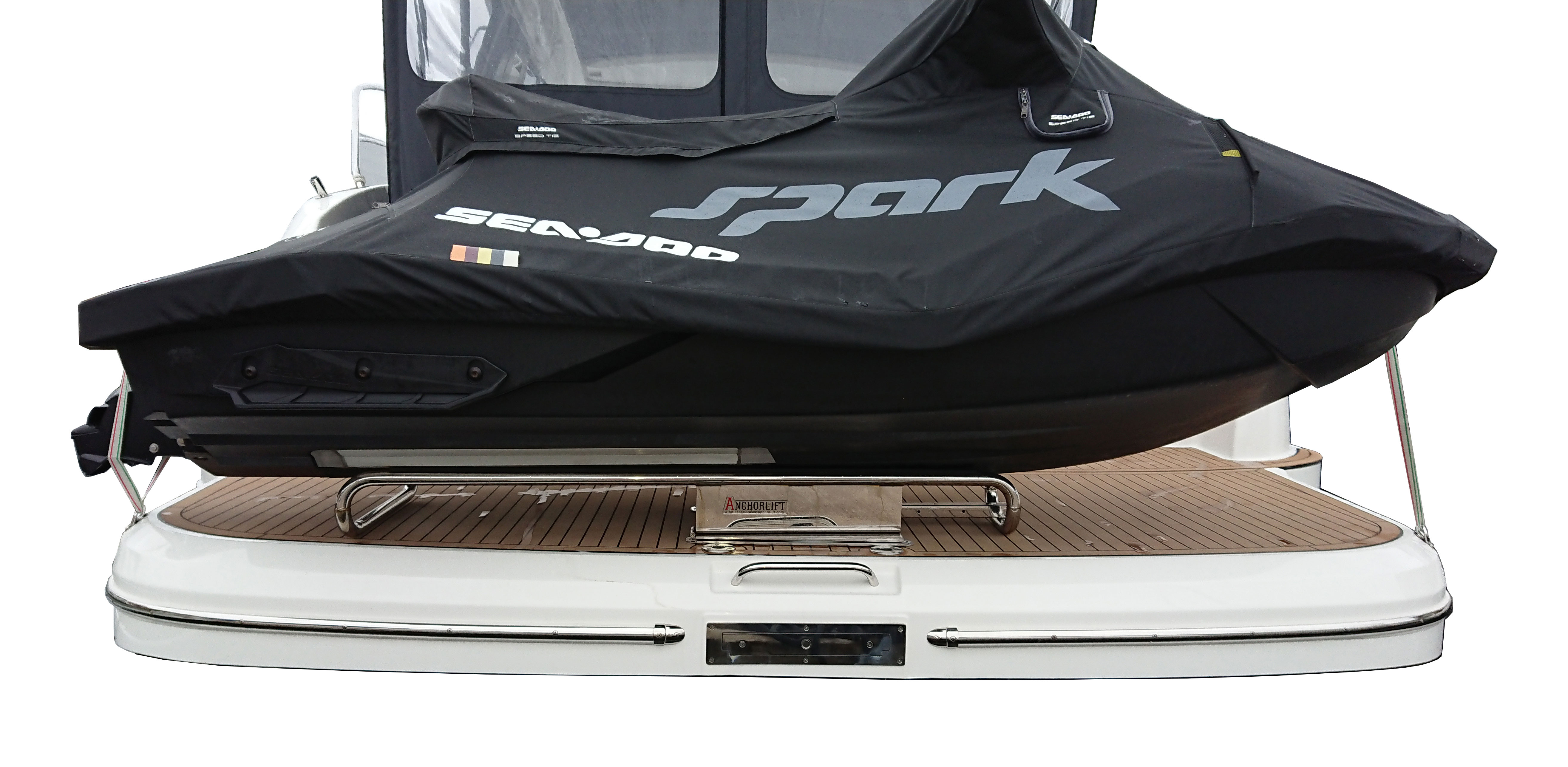

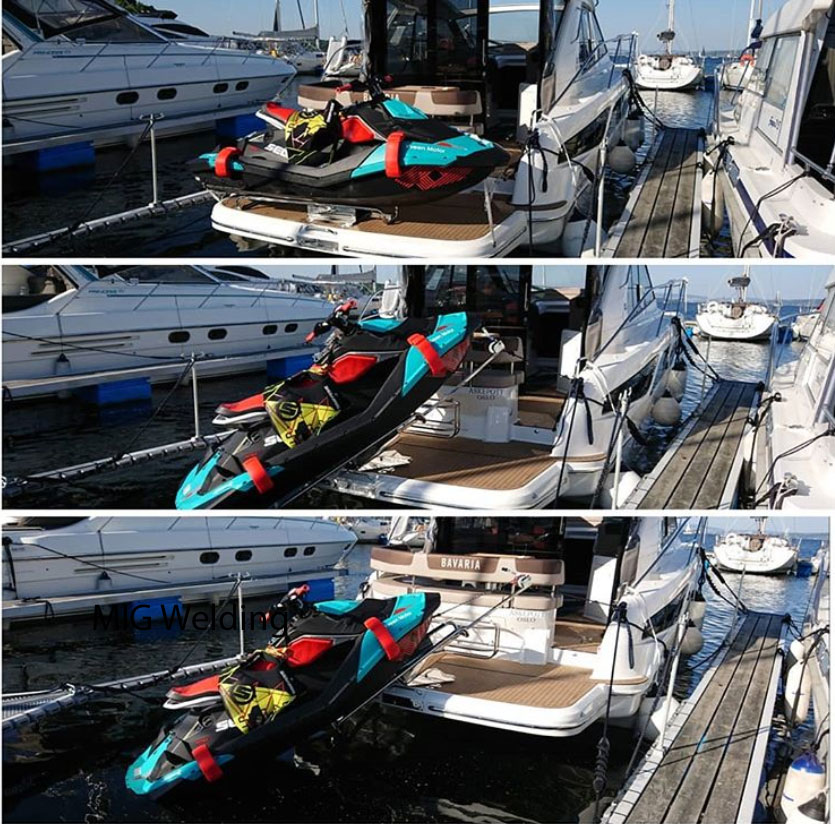

DD5 Swing
/ Tilt Davit for Scooters and Rib Dinghys |
| |
Swing and tiltable jet ski and rib dinghy
davit for swimplatform. Jet Ski and Rib dinghy up to 225kg 300cm

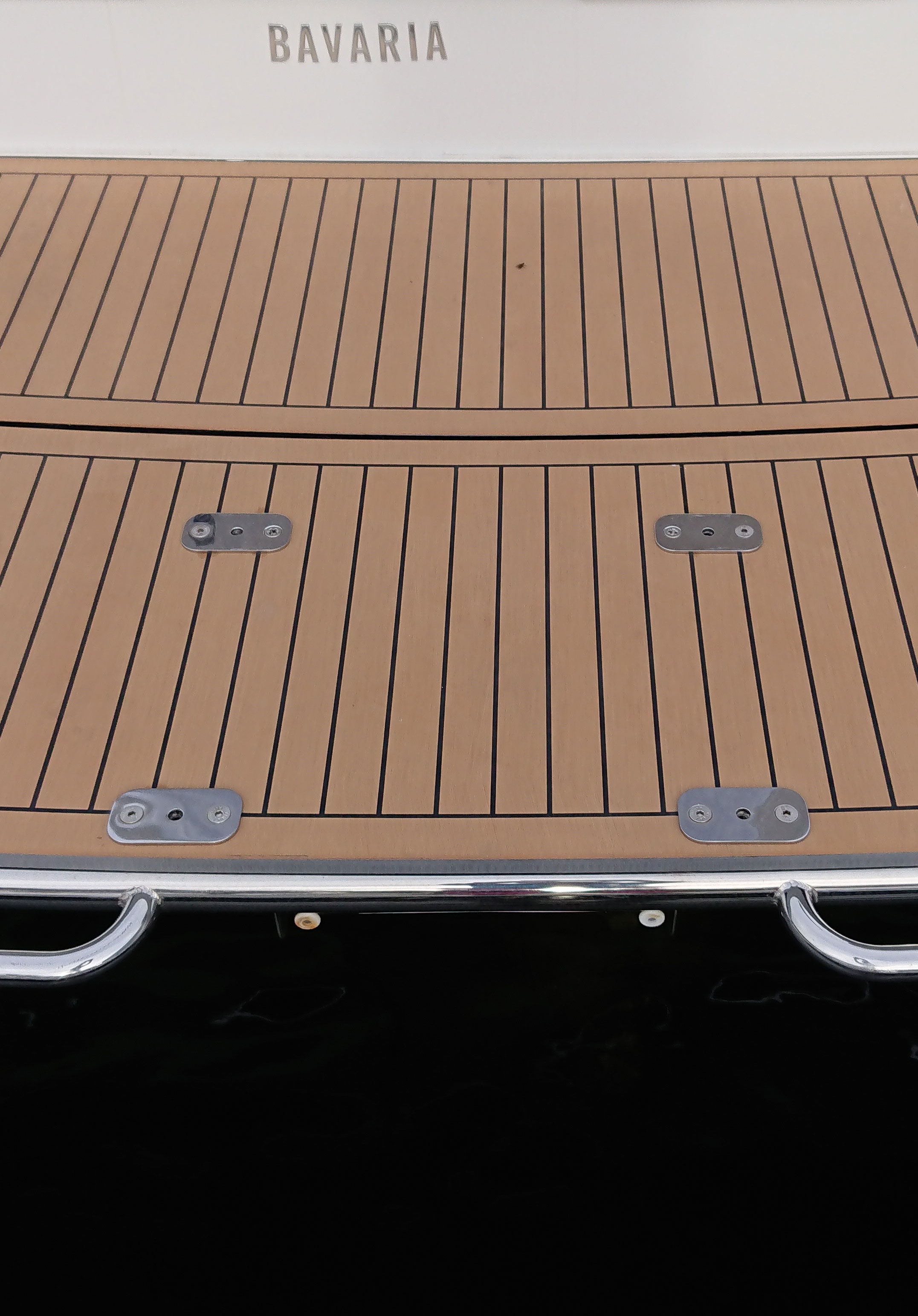

: Easy removable by only 4 bolts, making just four mounting plates
left on the swim platform.
: Davit stays in
horizontal position when swinged out 45 degree make you take your
jet / dinghy up closer to the platform.
:
Large 375mm / 15" turning disk for easier swing when heavy load.
: 70cm from hinged point to end, better launching for high mounted
swim platforms.
: Made in 30mm
stainless steel tubing 316L, high gloss polish, yacht quality.
: No plastic or aluminium parts.
: Made in Europe.
|

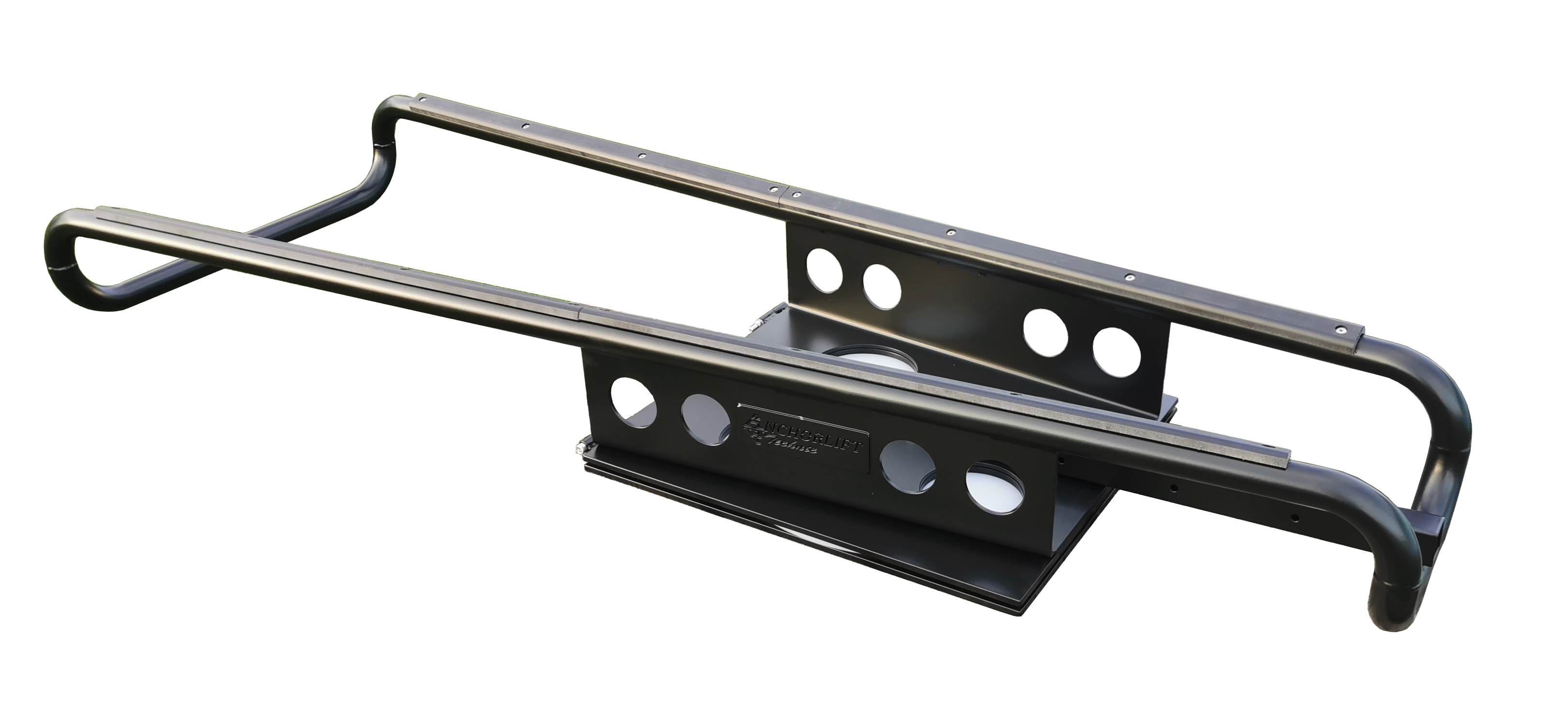

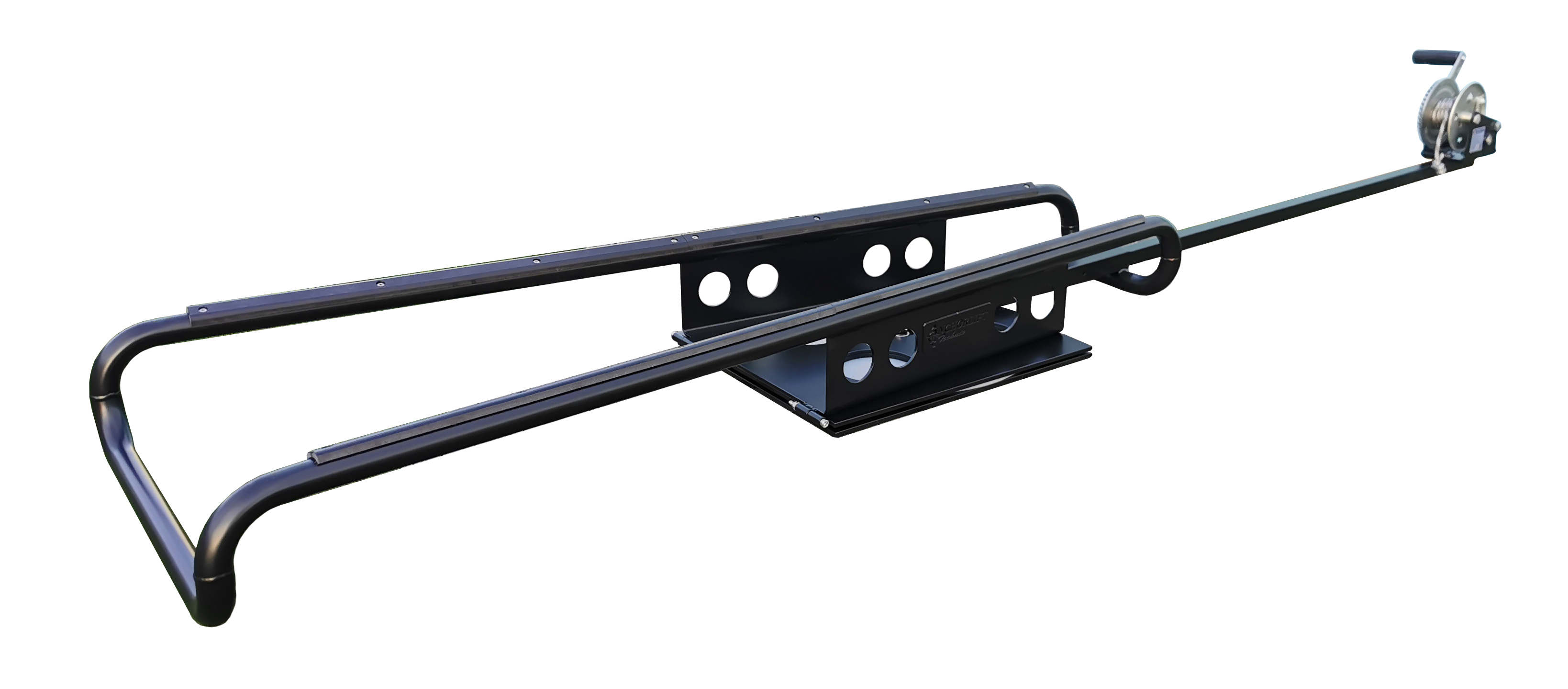

Black Edition
 |
|
Model
|
Length
|
Width
|
Ideal for boat
size
|
|
DD5
|
140cm - 55,1 "
|
50 cm - 19,6 "
|
35ft to 70ft
|

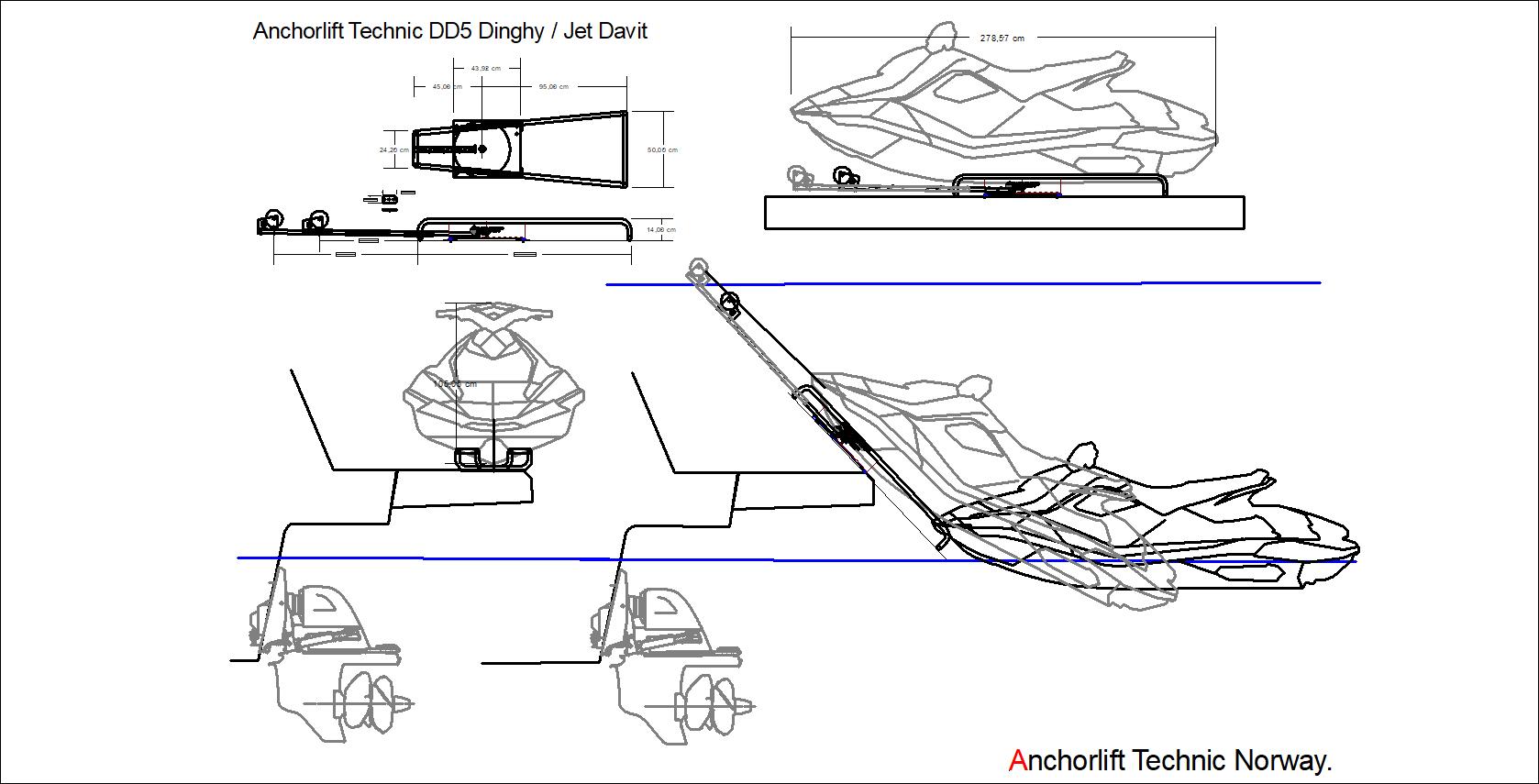

DD5
Diagram
DD5 Manual
|
|
| |
|

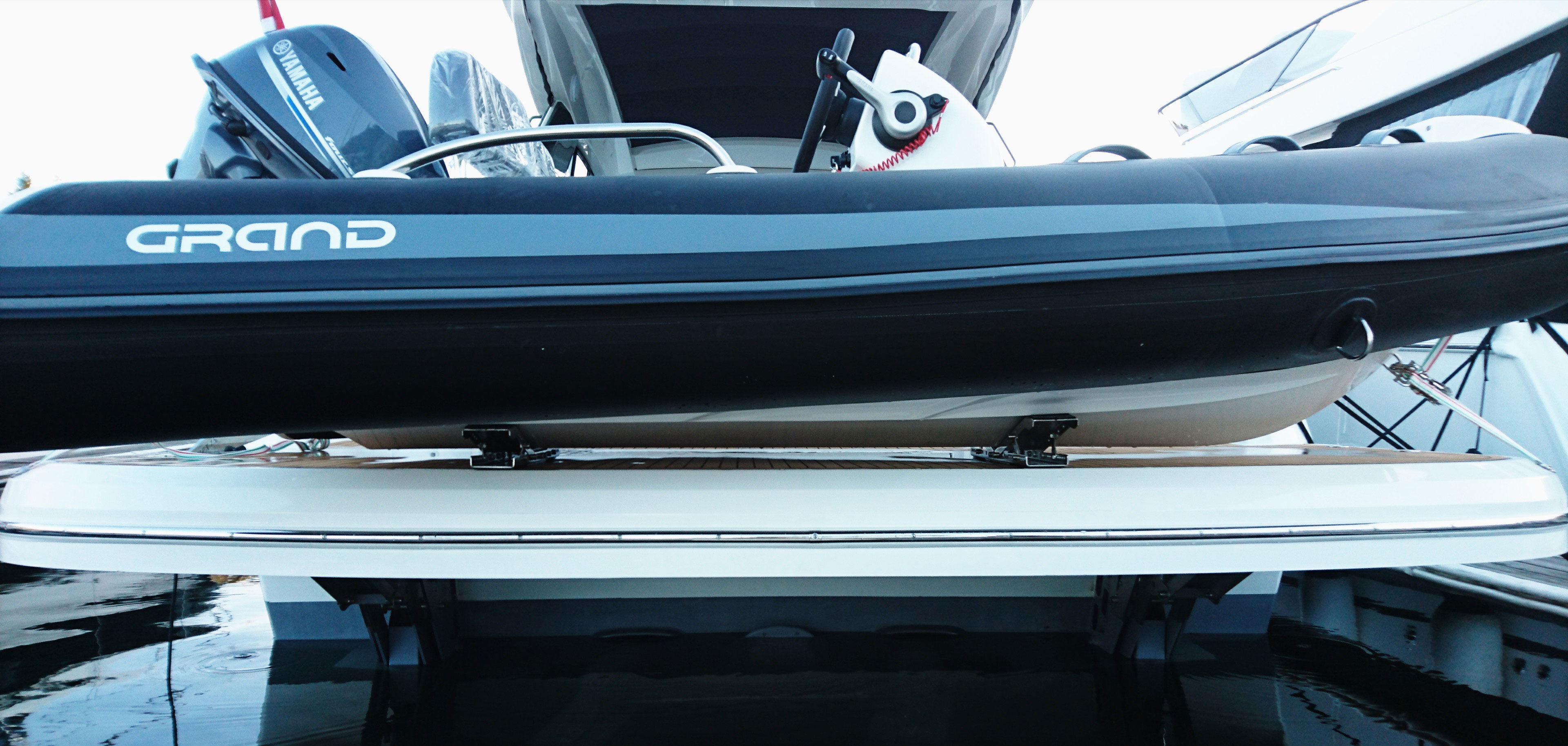

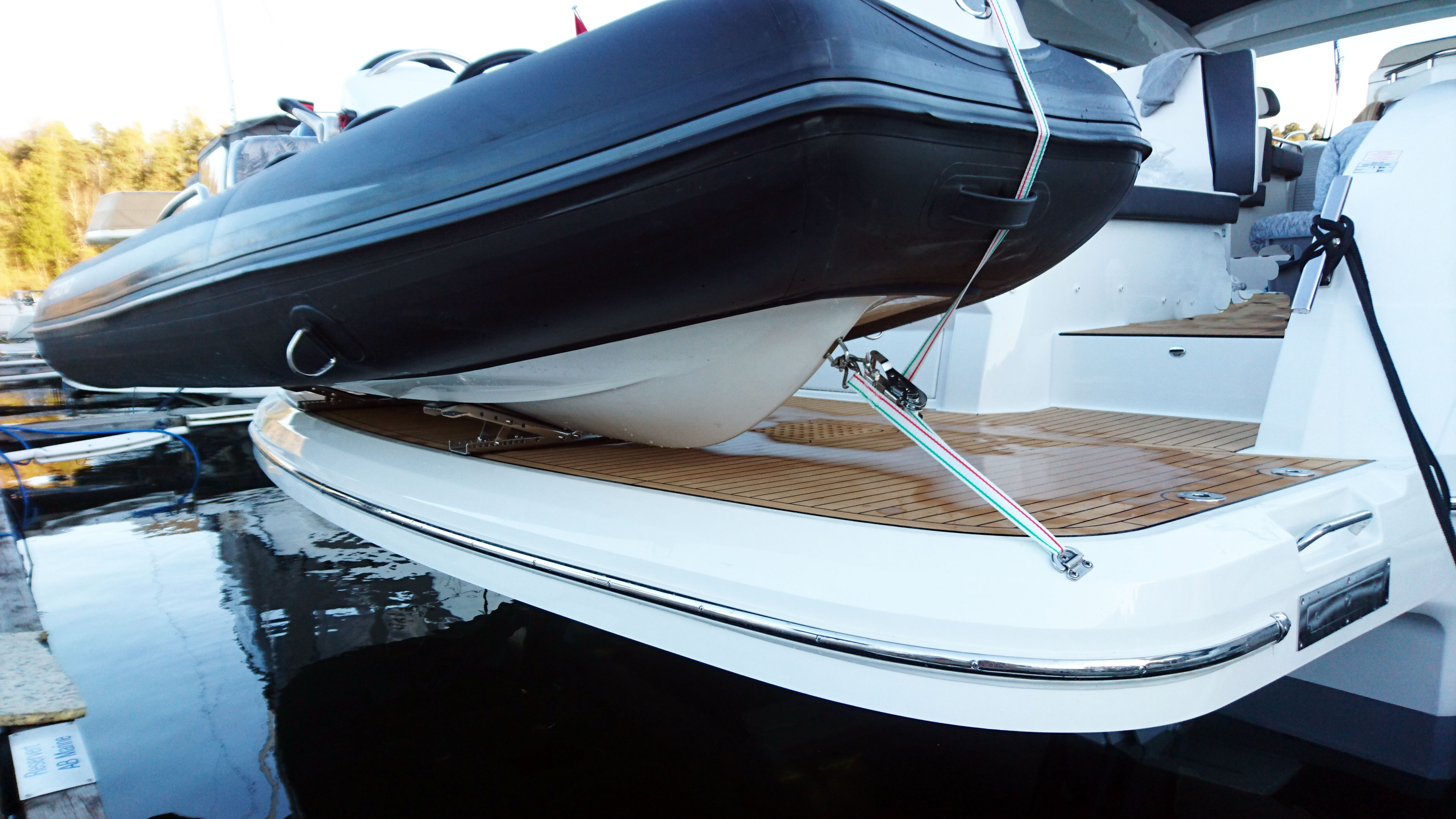

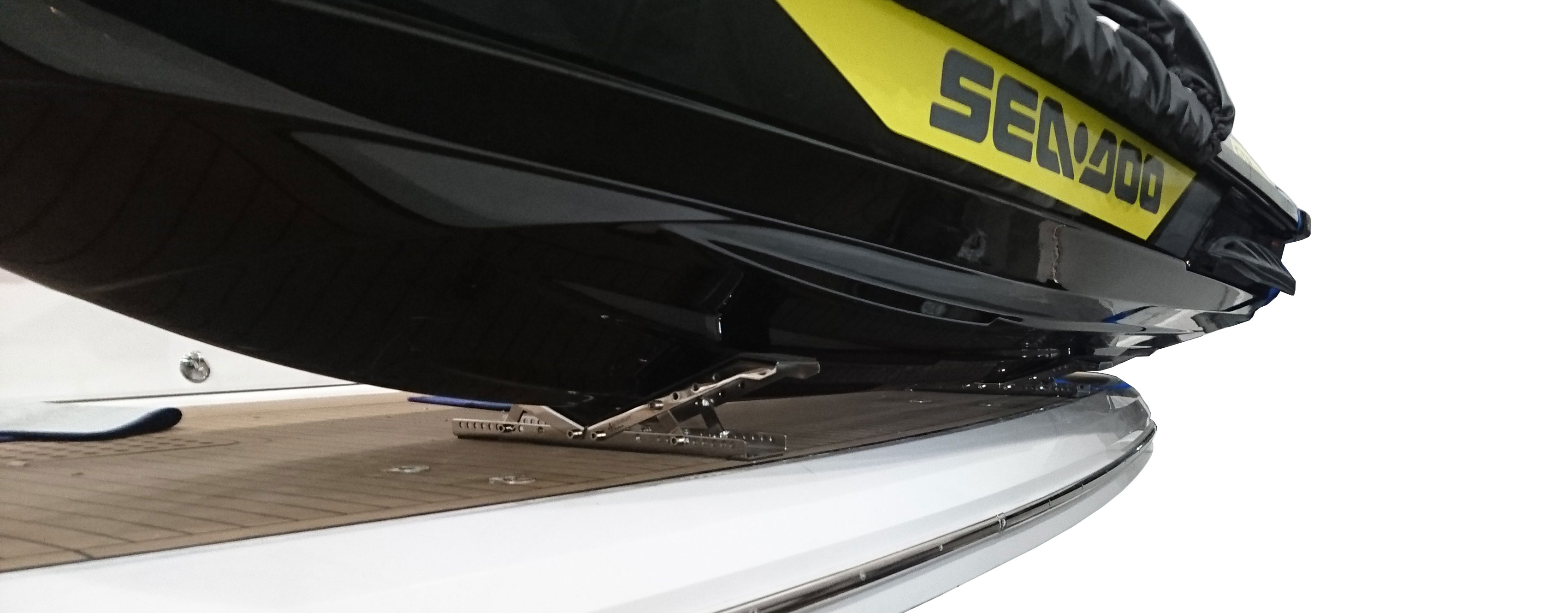

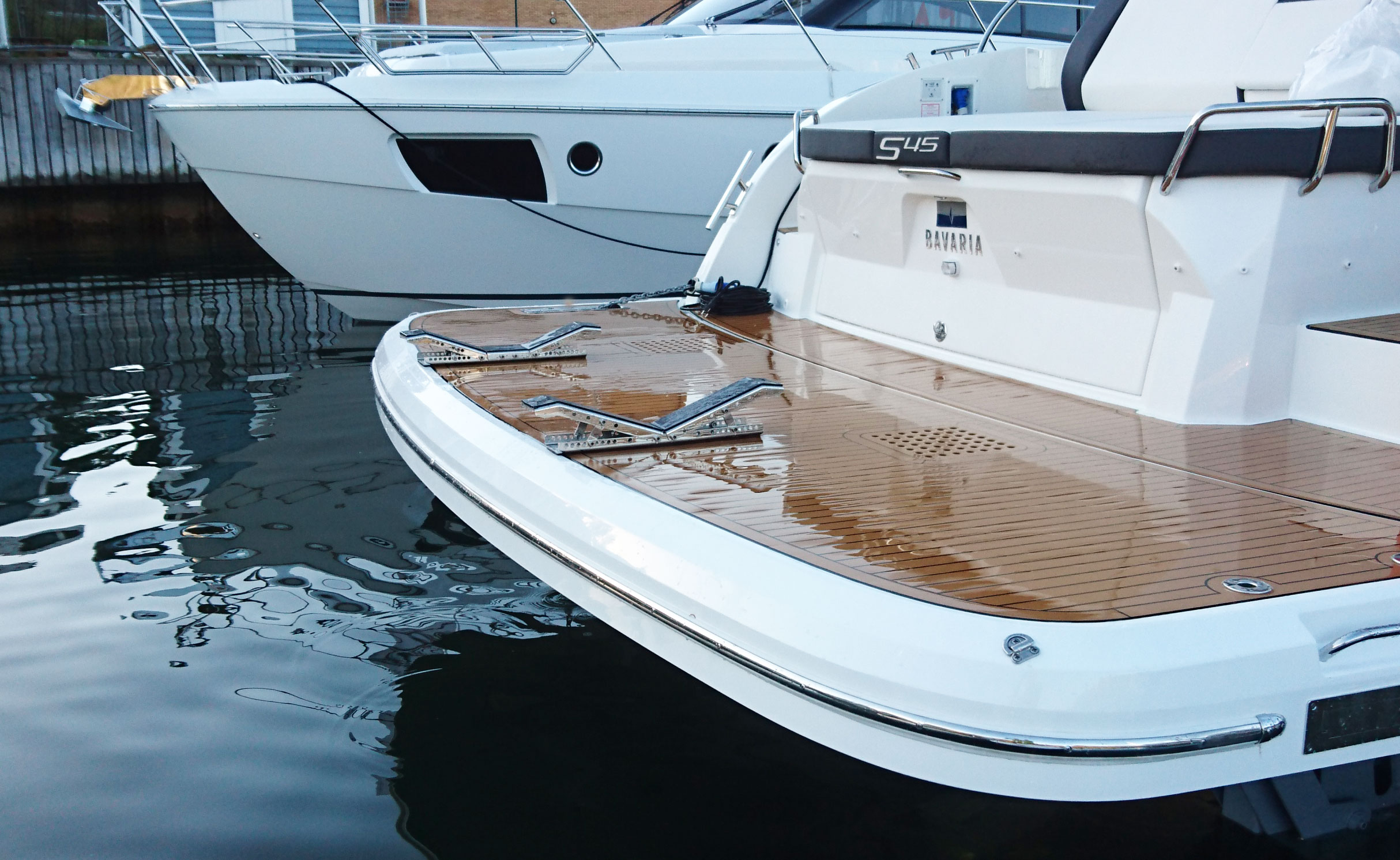

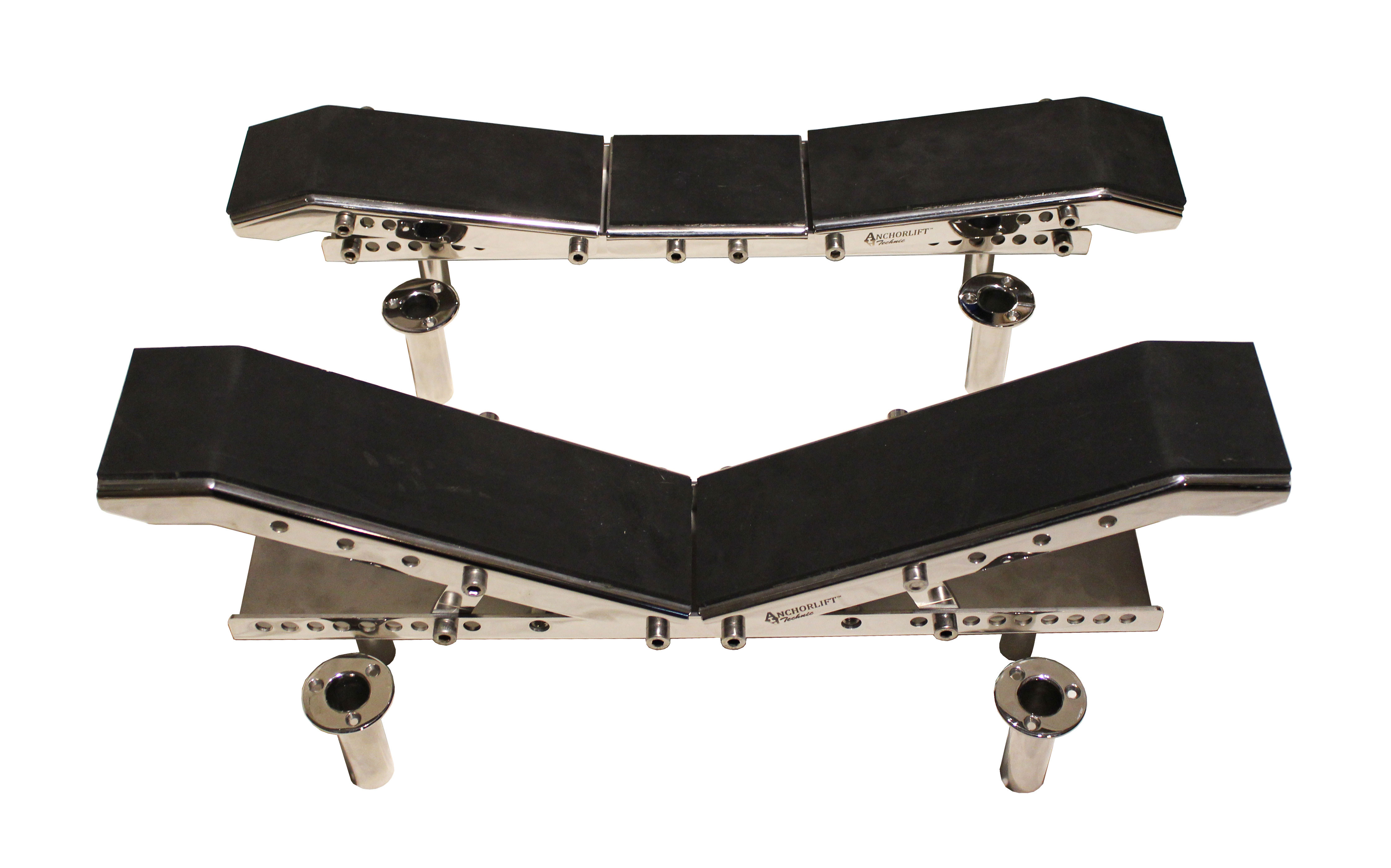

DD3
Adjustable davit for Scooters and Rib
dinghy
|
|
Davit for jet ski and rib dinghy that
has hydraulic swim platform or crane to lift the scooter / dinghy in
place.

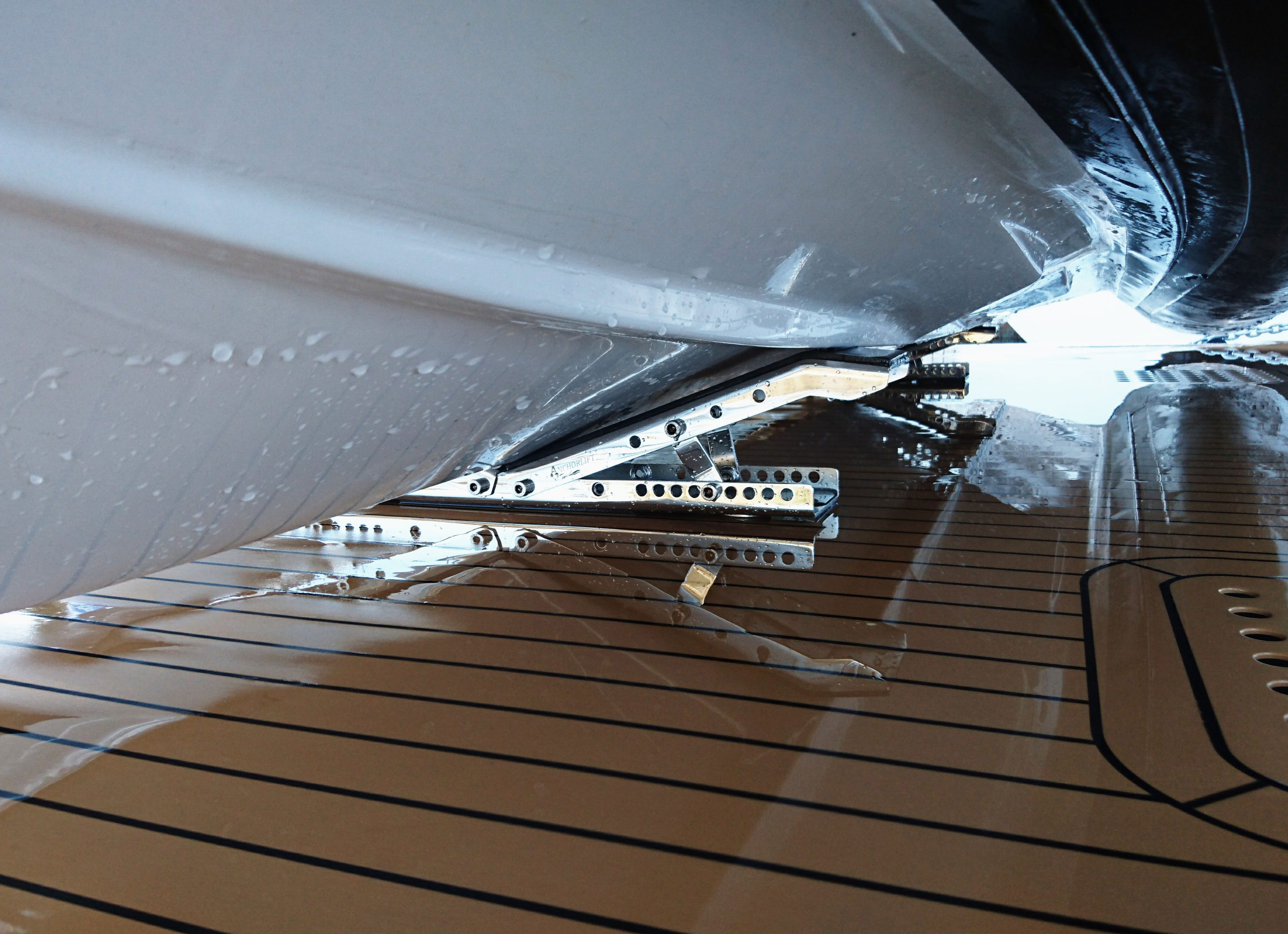

Fully adjustable V shape bow davit and flat
bottom stern davit for steady storage.
Made in heavy
duty high polish 316L 3mm stainless steel plate with 5mm rubber on
top. Easy removable. Made in Europe.
| |
|
 |
|
Model
|
Length
|
Width
|
Scooter /
Dinghy
|
Max Load
|
|
DD3
|
60cm - 23,6"
|
10cm - 4 "
|
To 3,7m 12ft
|
400kg
|
|
DD4 |
70cm - 27,5" |
12cm - 4,7" |
To 6,6m - 22ft |
1200kg |
DD3 Diagram
DD4 Diagram
DD3 DD4
Manual |
|

 |
|
|

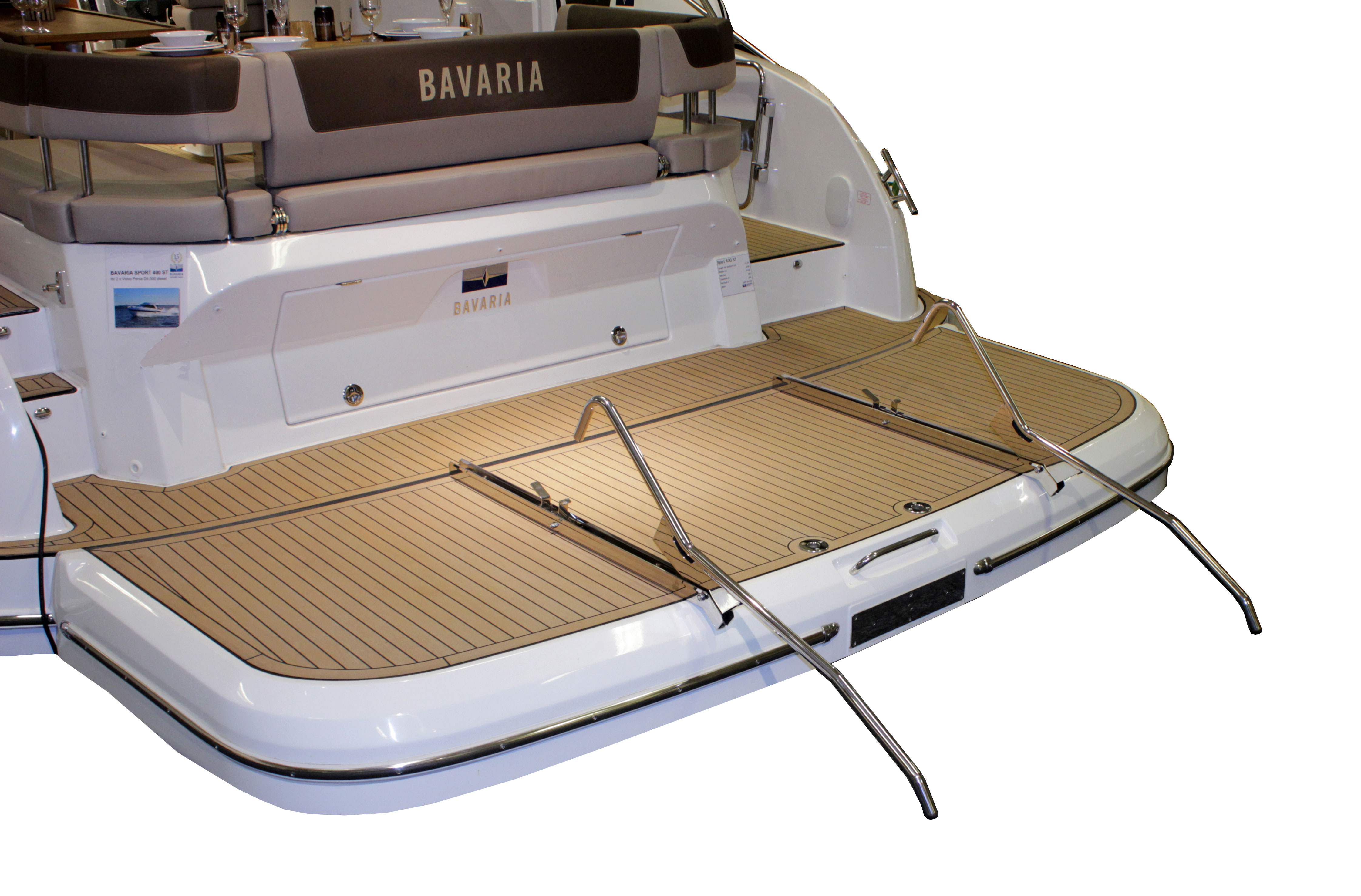

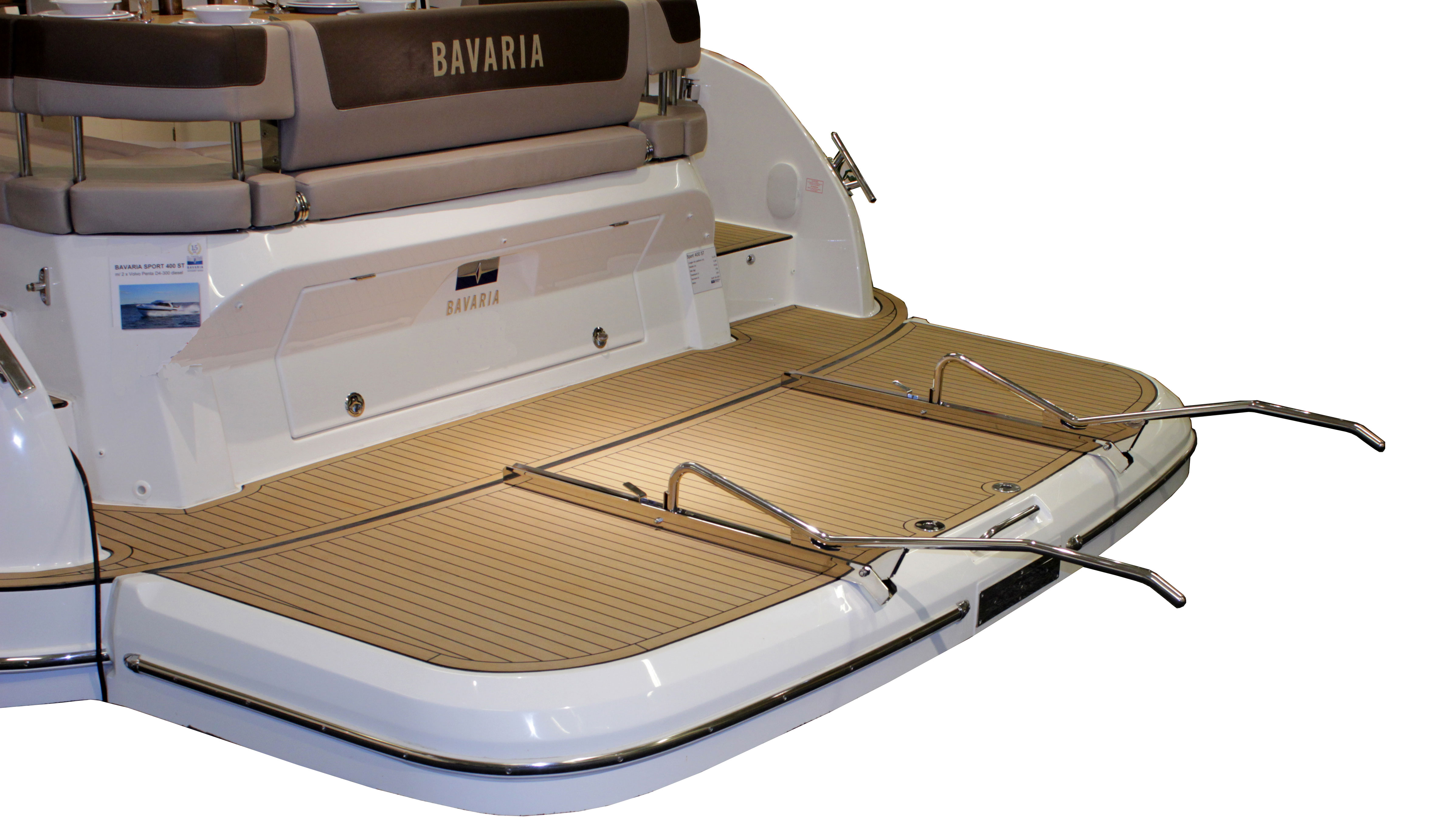

DD2 Tilt davit for swim platform
|
|
|
Tilt davit for swim platform.
Ideal for dinghy and rib dinghy up to 300cm 100kg.
Made in 25mm stainless steel tubing 316L high gloss polish. Made in
Europe
|
 |
|
Model
|
Length Total
|
Width
|
Scooter /
Dinghy
|
Max Load
|
|
DD2
|
168cm - 66,1 "
|
32mm - 1,25 "
|
To 300cm 10ft
|
120kg
|

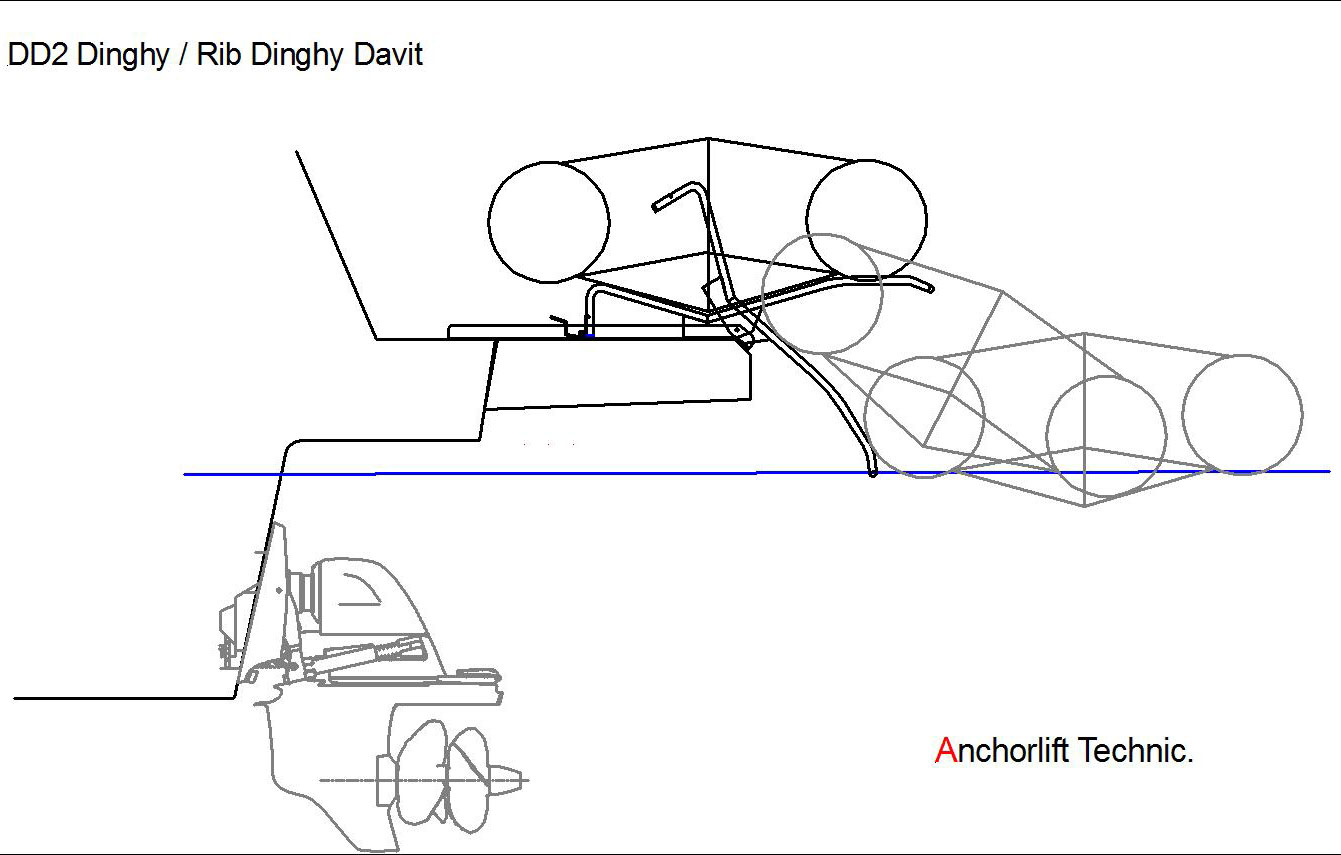

DD2 Diagram
 |
|
|
