What size boat do you need Windlasses for?
Windlasses for Boats from 20 - 35 feet
Barracuda logo

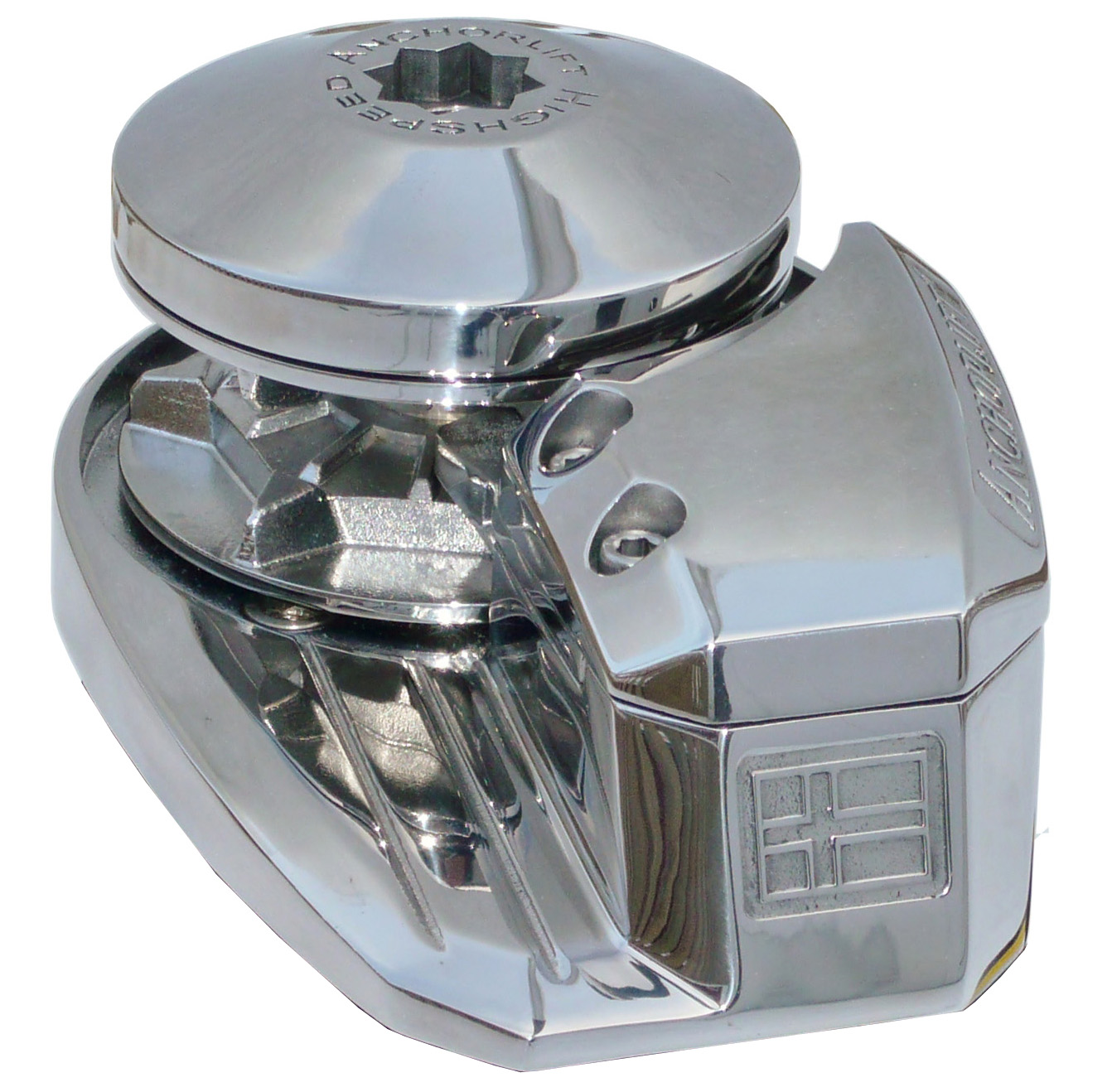

Low Profile
  Highspeed Windlass logo
These Low Profile models take up less space on the deck. Designed for smooth & silent motor/gear operation under the deck. Powerful and compact windlass with capstan for optional warping operation. Vertical shaft in stainless steel. Highspeed drop of up to 40 m (120 ft) per minute. Manual free fall with  adjustable clutch. Stainless steel parts in high polished steel AISI 316L. Long term trouble-free operation. Works with chain only or rope/chain combination.
Model B1012 can also be used on stern windlass systems (Scandinavian marked mainly) and can be used on sailboats up to 42Ft.
and motorboats up to 37Ft.
PDF icon

PDF icon

PDF icon   Product sheet Barracuda 600

PDF icon   Product sheet Barracuda 900

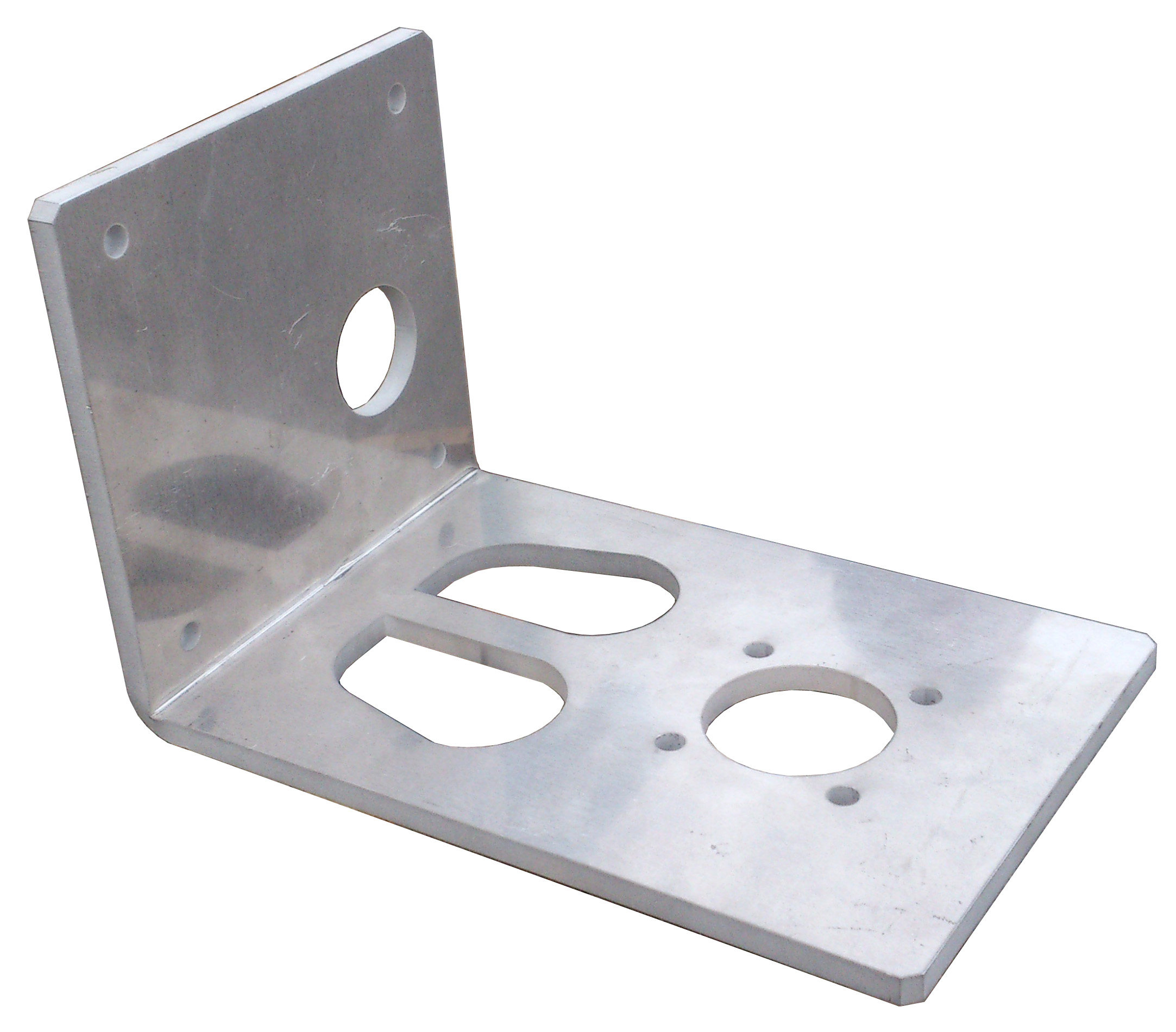

Inside Mounting Bracket for Barracuda
Part No 90201

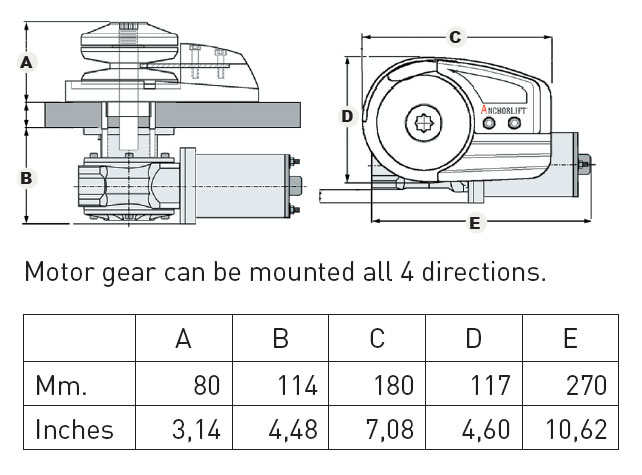

Low Profile model
Model Number
Barracuda 900 - B912
 Barracuda 600 - B612
Motor:
900 watt
 600 watt
Voltage:
12 volt
 12 volt
Max Working Load:
220 kgs - 485 lbs
 180 kgs - 396 lbs
Max Power Pull:
 660 kgs - 1450 lbs
 540 kgs - 1188 lbs

Amp draw Drop:
24 Amp No load.
 18 Amp No load.
Amp draw Up approx: Normal load: 6mm chain approx 45 / 47amp.
Normal load: Rope/chain combo 35 / 38 amp.
Drop Speed:
38 m-126 ft
 35 m - 115ft
Up Speed: Normal load: 6mm chain approx 22m - 85ft  / 26m - 86ft min
Gypsy  option 1:
Europe DIN766:
Chain. 6 mm DIN 766  Rope: 12 and 14mm
Gypsy option 2:
USA, Canada: HT G43

Chain 1/4"HT G43 - 7 mm DIN766  Rope: 1/2" - 12 mm

Gypsy option 3:
USA, Canada: HT G43

 Chain 1/4"HT G43 - 7 mm DIN766. Rope combo: 9/16" - 14mm
Most used chain:

6mm DIN766 30 to 50m Europe
1/4"HT G43 15 to 25ft in combination with rope. USA, Canada

Most used rope/chain combo
(Rods)

DB1/4-150 165ft - 50m  DB1/4-200 215ft - 65m
DB1/4-250 265ft - 80m
Most used anchors: B912  7,5kg - 16,5lbs to 10kg - 22lbs Pro Plow and Pro Claw.
Cable Size: 16mm2 - 5 AWG / 25mm2 - 3AWG Normal cable lenght.
Circuit breaker: 100 amp 80 amp
Deck thickness: 20mm - 3/4" to 40mm - 1,57"  (Up to 65mm - 2,5" with longer bolts)
Switch gear: Toggle switch 90800, Rocker switch 90801, Foot switch 90900
Radio remote 91354, Combo switch pack 92080 / 92100.
Weight
8,3 kgs - 18,3 lbs
 7,5 kgs - 16,5 lbs

Part No:
B912-6 Barracuda 900 SS Low. 900w 12v gypsy 6mm DIN766 chain Rope 12-14mm
B912-7 Barracuda 900 SS Low. 900w 12v gypay 1/4"HT G43 chain Rope 1/2"
B612-6 Barracuda 900 SS Low. 900w 12v gypsy 6mm DIN766 chain Rope 12-14mm
B612-7 Barracuda 900 SS Low. 900w 12v gypay 1/4"HT G43 chain Rope 1/2"
Stern installation windlass system:
Sailboats up to 42Ft.
Motorboat up to 37Ft.
Purchase this product




Anchorlift seek ways to continually improv products, design and spesifications.
Products design and spesifications subject to change without notice.
